Q1: what are the poe function for the industrial switch of Rayin Technology?
A: what is poe？PoE (Power over Ethernet) is a technology that allows network cables to transmit both data and electrical power to network devices at the same time. Our main poe function of POE Settings include: Rule Configuration, Device Configuration, and Port Configuration.
· Rule Configuration (Used to set the policy rules for POE power supply);
· Device Configuration (Used to configure the global parameters of the POE device);
· Port Configuration (Used to configure the power supply parameters of individual POE ports).
Q2:What are the management functions of POE timing power supply rules?

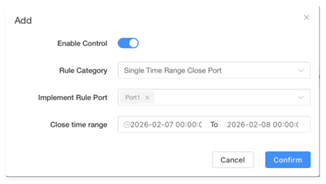

A: the main operation steps of the function rule management are to enable the control, select the rule type, specify the effective port, and set the execution time period.
The rules include:
l No Rule
l Single Time Range Close Port
l Daily Time Range Close Port
l Weekly Time Range Close Port
So that the user can configure the corresponding rules according to the actual application scenario.
Q3: Could you please explain more for the detection and handling strategies for PoE power receiving devices of the industrial switches from Rayin Technology?
A: Rayin Technology (www.szrayin.com) has always considered in the user's perspective, and it is designed automatically to detect and fault handling, and it is convenient for remote operation and maintenance in unmanned scenarios. The administrator can create the monitor entry, enter the terminal name and the IP address, open the online detection: support ARP method to continue the inspection, and customize the detection cycle. Once the system is offline, the system can automatically execute the preset strategy: continuous circular detection, restart of the POE port power for advanced poe switch function: or directly close the port power.
Meanwhile, support for the flexible management of the monitoring items，it can edit parameters or remove unwanted monitoring tasks at any time. Present all monitoring configurations using a unified list.
Q4：Do your poe function have any other functions?
A: there is also a great job that can be configured by our POE port, which supports the detailed, independent management of each poe port, and shows the rules of the timing power control of each port binding, which facilitates the quick verification of the policy of the port.

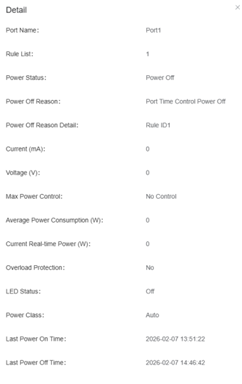

The page supports real-time view of the complete operation details of the single port, covering the full information of the port power state, the control rule, the running parameter, and so on.
It also supports online flexibility to modify the independent configuration parameters of each port, and the parameter update is implemented without restarting the device. For configuration exceptions, through the diversified port management ability, the precision control and flexible adjustment of all POE ports are involved in the rapid failure of the operation, and the efficiency and management flexibility of the construction of the field POE equipment are greatly improved.
The advantages of Rayin Technology
Rayin Technology’s industrial switches provide the complete intelligent POE management system, and solve the problem of unmanned operation and maintenance in industrial scenarios. Based on the development of long-term industrial communication hardware and software, we continuously optimize the PoE control logic for the complex operating conditions. Compared with traditional PoE switches, Our products has a stronger remote self-healing capability and management flexibility, effectively reducing the workload of post-operation maintenance.As a manufacturer specializing in the independent research and development of industrial communication equipment, Ruiying Technology has fully addressed the long-term operational challenges in industrial sites through functional iterations. It has abandoned the simplistic management approach of traditional switches and adopted a comprehensive operation and maintenance mechanism at the software level. Rayin technology can provide free technical evaluation service, help you match your project function. Welcome visit our website for our product and technical white paper.
