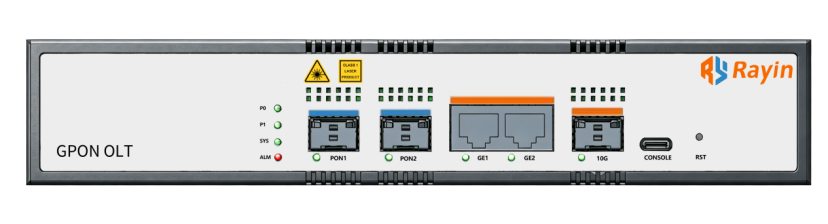

The traditional rack-mounted operator level large OLT is designed for the telecommunication center computer room, thousands households of large FTTH, with high cost, large volume, high power consumption and limited deployment features. For small, edge, scattered, space tension all optical scene demand, the mini Olt perfect matches these scenes, no need for a cabinet, can be put in low voltage box, corridor distribution box, outdoor mini optical distribution box, and office desk. It is an important device in the PON network system, especially for compact 2 port olt deployment scenarios.
1. Mini OLT: Rayin Technology’s Compact PON Overview
2. Rayin Technology’mini Olt, operate for the wide temperature environment
In applications such as rural networking and small-scale FTTH in residential areas, the OLT is often installed in sealed electrical boxes or outdoor simple cabinets, where the ventilation conditions are poor. If the initial material selection and design do not take consideration of these, problems such as packet loss and repeated restarts are likely to happen always after long-term operation. For operators and engineers, If deploy this kind of edge deployment of the 1 port Olt or 2 port Olt, both the inspection and the repair processes are time-consuming and labor-intensive, not only for the high cost, but also directly affects the end user experience. Rayin Technology’s mini olt gpon can be stabilized in the -20~65℃ environment, the product optimised the internal wind channel, and the heat dissipation of the C+++ optical module is strengthened. After the product’s device temperature is improved, the overall operating life of the OLT is prolonged, providing an alternative to traditional tenda olt solutions.
3. Rayin Technology’mini Olt, with compact design, save transportation cost

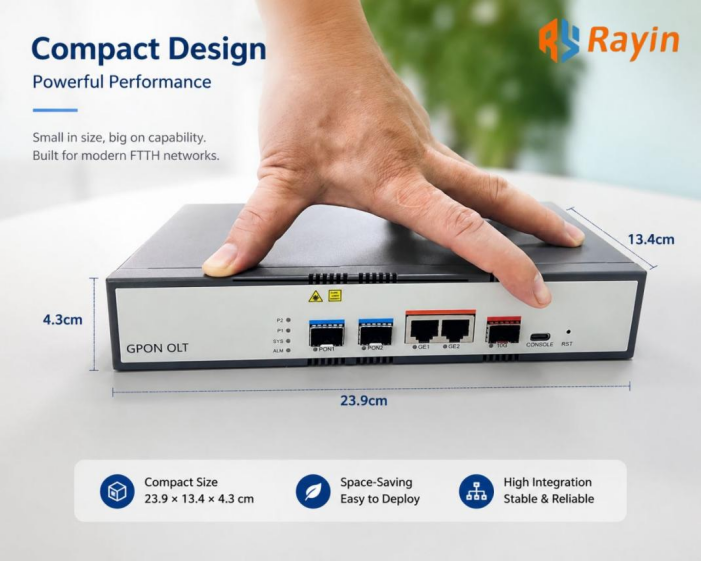

The whole machine adopts the compact integrated design, the whole olt machine specification is only 239mm (l)× 132mm (w) ×44mm (h), which is much less than the market machines. The compact design can significantly reduce the space occupied by a single unit during packaging, effectively lowering the volume during shipments and significantly saving the overall costs of long-distance transportation. At the same time, the equipment has better adaptability and can be easily integrated into narrow installation spaces such as outdoor low voltage box, small control cabinets, and corridor distribution boxes, solving the installation problems of traditional large-sized equipment boxes which is hard to place problem. Deployment scenarios of the 1 port olt,2 port olt,4 port olt are not limited by space.
4. Rayin Technology’mini Olt, with fully open architecture, is compatible with mainstream brand Onus
Most of the olt machine and mini OLT on the market now have ecological barriers, only be compatible for their ONUs. Because the manufacturers applied private agreement, if connected to other manufacturer’s ONU, although the network can be connected, but other functions, such as the remote configuration, status check, fault management can’t be used. For a long time, customers can only buy the same brand equipment from the same manufacturer, including OLTs and ONUs. Rayin Technology (www.szrayin.com) has fully taken into account the cost pressure of customers and considered the reuse requirements of existing ONU devices, avoiding the limitations often found in some tenda olt solutions. As long as it is the customer's existing optical terminal, we can cooperate with the debugging, maximize the use of the original equipment, and reduce the duplication of unnecessary hardware.
5. F&Q
Mini OLT can be used in residential areas, rural networks, small offices, outdoor cabinets and so on.
The user capacity depends on the PON ports and splitting ratio. For example, a 2 port OLT can support hundreds of ONUs with optical splitting.
Many Mini OLT solutions support standard PON protocols and can work with compatible third-party ONUs.
Yes. Some industrial Mini OLTs support wide temperature ranges and can be installed in outdoor cabinets or low-voltage boxes.
Yes. Most Mini OLT devices support remote configuration, status monitoring, and fault management through network management systems.
6.The advantages of Rayin Technology

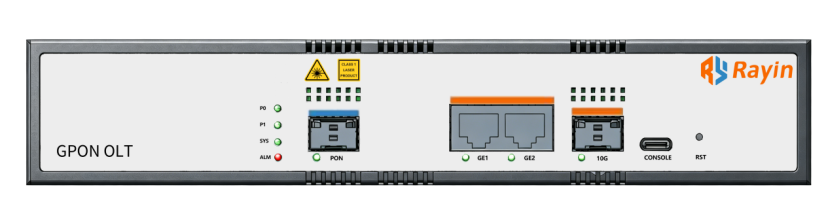

As a manufacturer of independent R&D of industrial communication equipment, Rayin Technology can provide free technical evaluation service, help you match the function of the project with our mini olt gpon solution. Welcome to our website for technical white paper about single port olt.
