For small and medium-sized enterprises, Rayin Technology combines Mini OLT, POE ONU, ordinary optical network and optical AP together to provide a cost-effective and efficient network architecture supporting fttp upgrade and covering mainstream ftth ftto networking modes, achieving multiple functions such as flexible deployment, stable transmission and compatible to all scenarios. It is specially designed for small and medium-sized enterprises. Many small shops and small companies have a tight budget. This solution is cheap, and the operation of wiring is a convenient and don’t need to change the wiring much for future increase of the desk position or expansion of store coverage. At the same time, the optical fiber transmission is very stable, it is not easy to be disturbed by the environment such as electrical appliances, and it is easy to do daily management.
In this paper, we will introduce very detail about Rayin Technology’s all optical network FTTO solution, combining with the application case.
1. FTTO solution’s advantages
a. All-optical architecture
With the all-optical architecture featured in mini ftto and fibre ftto solutions, the optical transmission, network access and POE power supply ability are unified in the same system. Not only can reduce the intermediate equipment and the wiring level, but also greatly improve the reliability of the overall network. The line link is simple, and the maintenance become convenient. And even if many devices are connecting at the same time, the network will keep stable.
b. High cost-effective
The 1port/2port Mini OLT and the single port PSE ONU, which are self-developed by Rayin Technology, are very suitable for small and medium-sized enterprises. Because the whole equipment’s price is reasonable, it is suitable for limited Space office.
c. Wide scope of coverage
It can cover the various environments such as the office area, the public area, the conference room, etc., to meet the comprehensive requirements of wireless coverage, terminal access and business continuity. Whether it's an employee's daily office, or a meeting, a video, a store monitor，it always works.
d. Low wiring operation complexity
All optical network can effectively reduce the number of power distribution room and copper cables, reduce the operation complexity and the future maintenance cost, and improve the overall extensibility of the network. The wiring operation will be simple, saving time and manpower.
2. The application of Rayin technology’s Mini FTTO
A small and medium-sized manufacturing factory is about 400㎡, and considering the office transparency, and the office is separated by any physical wall, which are divided by glass and aluminum alloy. Employees are about 30-50.

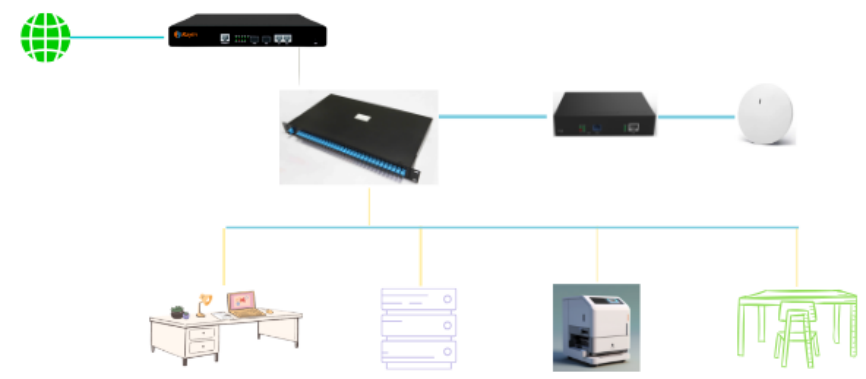

Rayin Technology provides below solution:
A. Design working site for 50 employees, cover the current 30 employee's requirements and leave about 20 additional desk positions.
B. Use optical fiber to connect the desk position. Configure Gigabit ordinary ONU for each position for working computer.
C. Terminal access such as IP phone.
D. Wireless coverage: use one High-power ceiling-mounted AP in the office area and the production area, provide each AP with the single port PSE ONU, simplify the difficulty of wiring operation.
E. Special function area’s arrangement: for the front desk, independent conference room and other functional areas, adopt the optical fiber direct connection, to provide Gigabit ONU, carrying the exclusive business of the visitor network, the meeting screen, the conference call and so on.
F. Fixed connected equipment arrangement: for computer room server network printer, production data watching board and other fixed connected equipment, according to the need to configure the ONU device.
Above all, the numbers of ONU device and PSE ONU are about 80pcs, which is fully matched to the scale of the Mini OLT.
3. Recommend FTTO products from Rayin Technology
According to the market feedback, now a large number of small and medium-sized offices, chain shops are looking for all optical network devices including ftto huawei and fttp broadband type solutions, which should be cost-effective and easy to install. Here is a set network equipment self-developed by Rayin Technology, which is suitable for small and medium-sized enterprises and shops.
A. OLT – L101P : It is single port GPON OLT, very small, is suitable for multiple FTTO scenarios, and it is the core access equipment for small and medium scale all optical network.
B. PoE ONU – P1100GMIP : Single PoE MDU，it is suitable for single port access requirements, which provides stable power and network access for terminals and AP.
C. PoE ONU – P1400GMIP: 4port PoE MDU，it is applicable to small access requirements, which can provide power and network access for the AP and camera.
If you want to have a detailed understanding of the products of Rayin technology, welcome to the website: www.szrayin.com.
