Choose the splice by where the joint sits. Fusion gives the lowest loss and the longest life on trunk and long-haul links; mechanical (cold) splicing wins for fast, power-free drops into homes; pre-terminated cabling wins in data centers and cabinets where deployment speed beats everything. There is no single best method — only the right one per location.
Rayin (Shenzhen Rayin Technology) is a manufacturer of GPON OLTs and industrial Ethernet switches.
Once you know the loss budget of your fiber optic cable run, the splicing method stops being a preference and becomes arithmetic.
Fusion splicing aligns the two glass cores and welds them with an electric arc — a permanent joint. A single joint can land at 0.02–0.05 dB, which meets the ITU-T G.652 single-mode splicing spec and is the lowest-loss, longest-lived option of the three.
The price is logistics: you must bring a fusion splicer to site, each fiber takes about 6–12 seconds, and you still need an OTDR to read the splice curve and confirm no bubbles or offset. It suits trunk cables, long-haul links, and any job with many joints that has to last for years.
Mechanical splicing — often called cold splicing — uses a high-precision V-groove and index-matching gel to physically align the fibers. No arc, no power. Per-joint loss is typically 0.2–0.5 dB: higher than fusion, but the tools are cheap and one person can finish in a corridor or a customer's home.
Its weak spot is the gel: under large temperature swings it can age, so long-term stability trails fusion. It is the natural fit for FTTH drops, scattered spot builds, and emergency repairs — work that is scattered and low-volume.

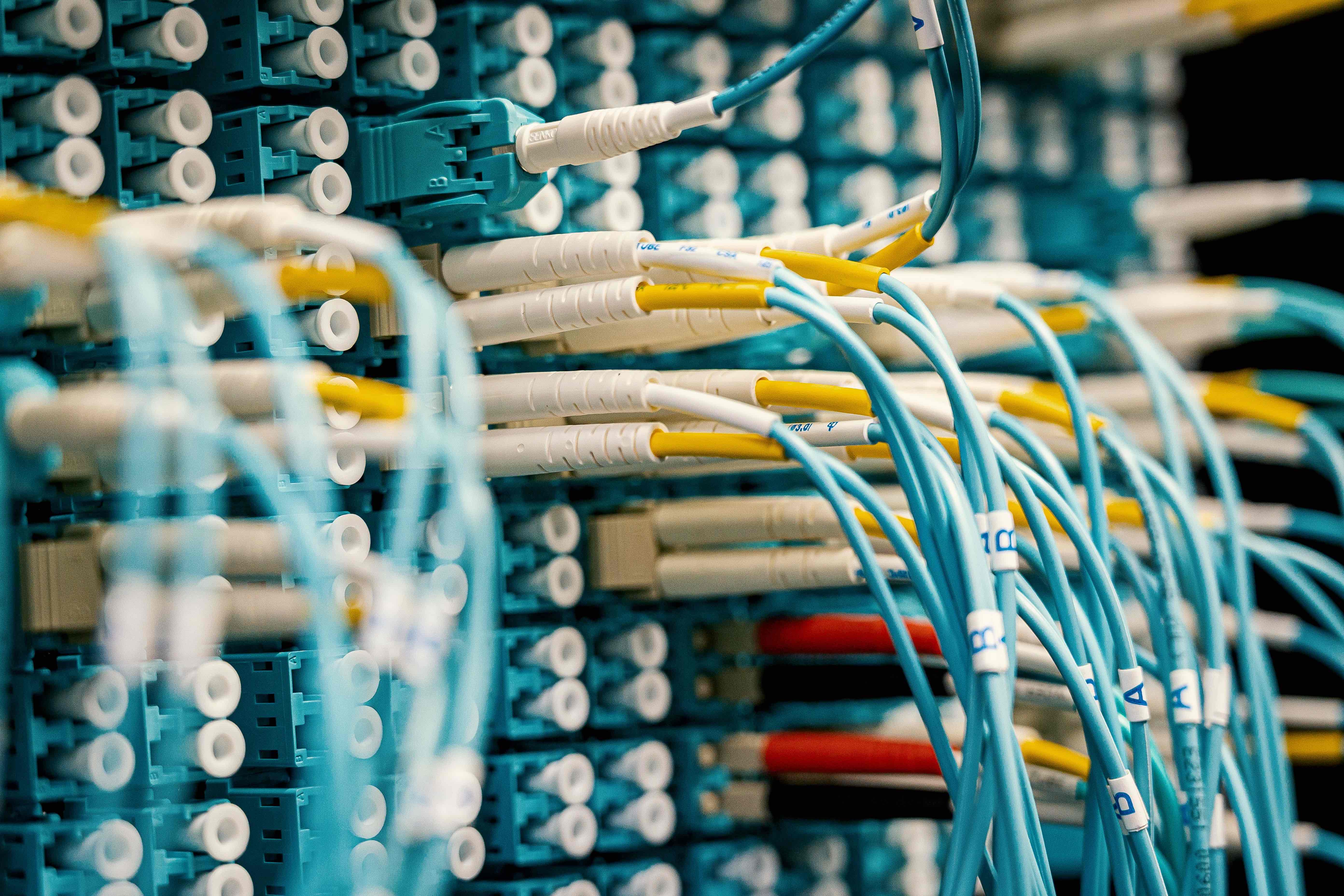

Pre-terminated cabling is polished in the factory into MPO/LC/SC ends and shipped as a finished harness; on site you only insert the pre-terminated ends into couplers. Factory polish holds insertion loss under 0.3 dB with good consistency, and field work needs almost no tools and no waiting.
It suits server rooms, data centers, and any project that must deliver fast. The downside is planning discipline: length must be measured up front, and it is less flexible than fusion if you need to re-route. Leave enough slack.
| Method | Per-joint loss | Tools / gear | Speed | Best for |
|---|---|---|---|---|
| Fusion | 0.02–0.05 dB | Fusion splicer + OTDR | Medium (needs site visit) | Trunk, long-haul, bulk |
| Mechanical (cold) | 0.2–0.5 dB | Mechanical splice + cleaver | Fast (no power) | FTTH drops, spot repairs |
| Pre-terminated | < 0.3 dB | Almost no tools | Fastest | Data center, cabinets, fast delivery |
Real projects rarely use just one. Run fusion on the trunk and distribution to keep loss low, fall back to cold splicing for scattered end drops, and use pre-terminated cabling in rooms and racks to save time. The key rule: log and label every joint. When you later chase optical loss, you need to know which segment is eating the budget.
Rayin's industrial switch and PON lines are built to industrial grade, so fiber-link planning on a GPON network can be done together with the access equipment. Company background is on the Rayin profile.
Does 0.05 dB (fusion) vs 0.3 dB (cold) actually matter? Per joint, barely. But a link often has a dozen joints. At 0.3 dB cold vs 0.05 dB fusion, a dozen joints add up to 2–3 dB of difference — exactly what eats the margin for PON splitting and long-haul transport. Weak-light sections fail first.
Can I cut a pre-terminated cable shorter on site? Not recommended. The ends are factory-polished; cut them and they are ruined — you then need a full replacement or a fusion transition. Measure every length carefully before ordering.
Do cold splices fail over time? They can. The matching gel reacts to temperature and humidity, and in harsh environments loss can creep up after a few years. Prefer fusion outdoors and in wide-temperature spots; cold splicing is better indoors, short-term, or where rework is easy.
What does the OTDR trace mainly show? Two things: whether the event reflection peak is small (good weld, no air gap), and whether the whole curve's attenuation slope is smooth. An abnormal step usually points to one joint with high loss or excessive bending.
Which method should a small FTTH rollout use? Fusion on the trunk for low loss, cold splicing for the scattered home drops, and pre-terminated harnesses in the cabinet for speed. Match the method to the location, not to habit. On a Rayin GPON deployment, plan the splice method per segment exactly this way so the access gear and the fiber stay consistent.
