P1100I

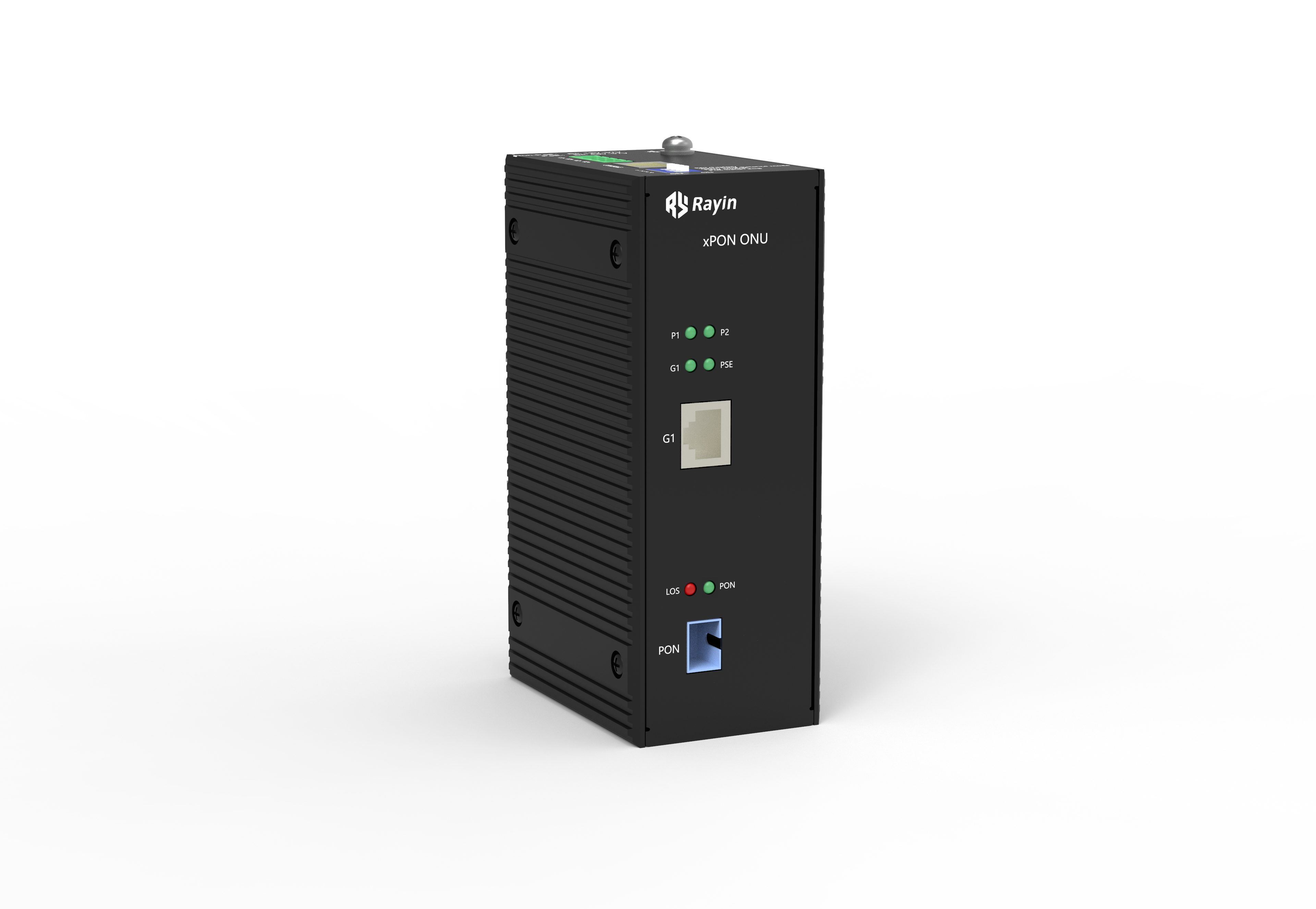

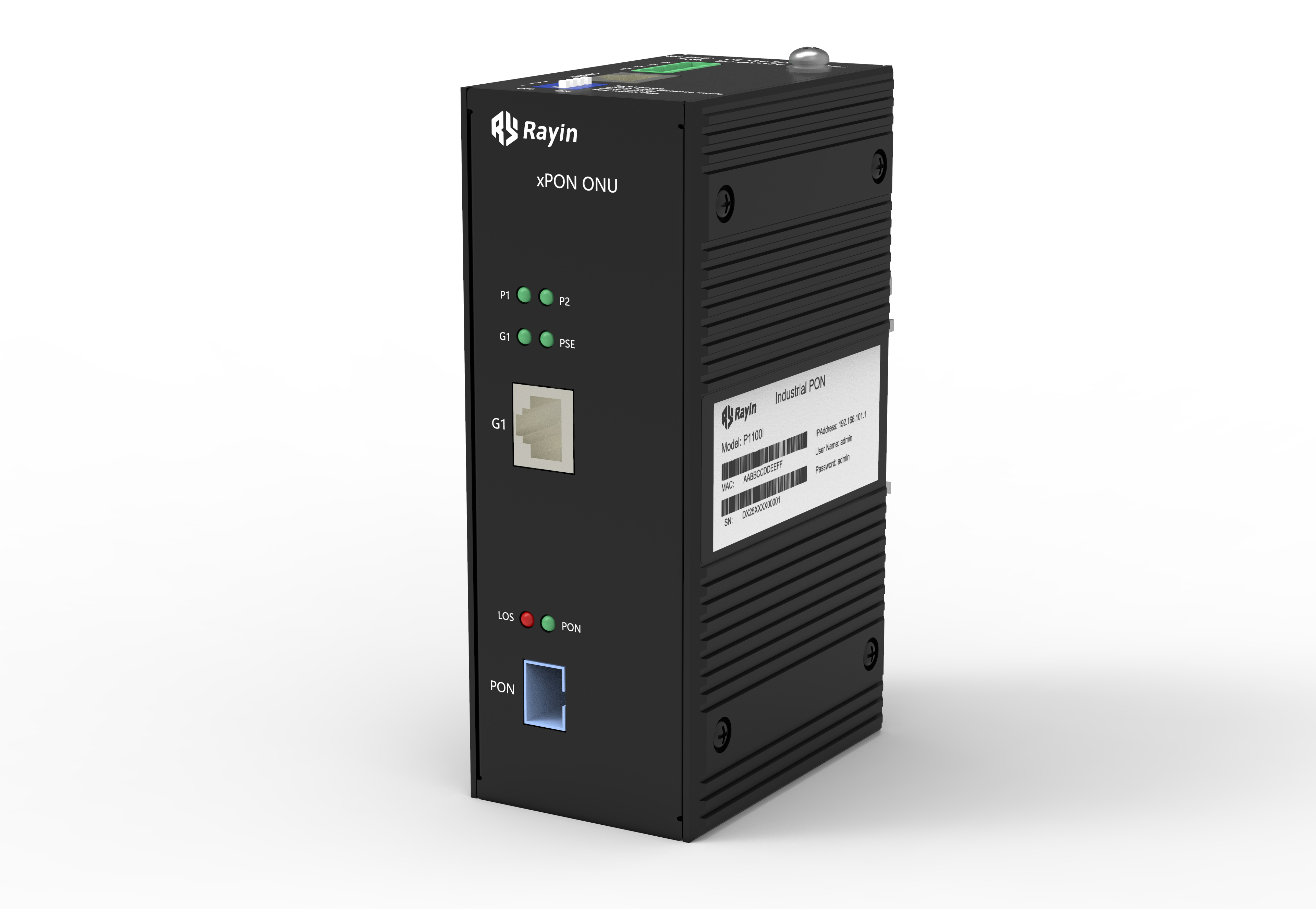

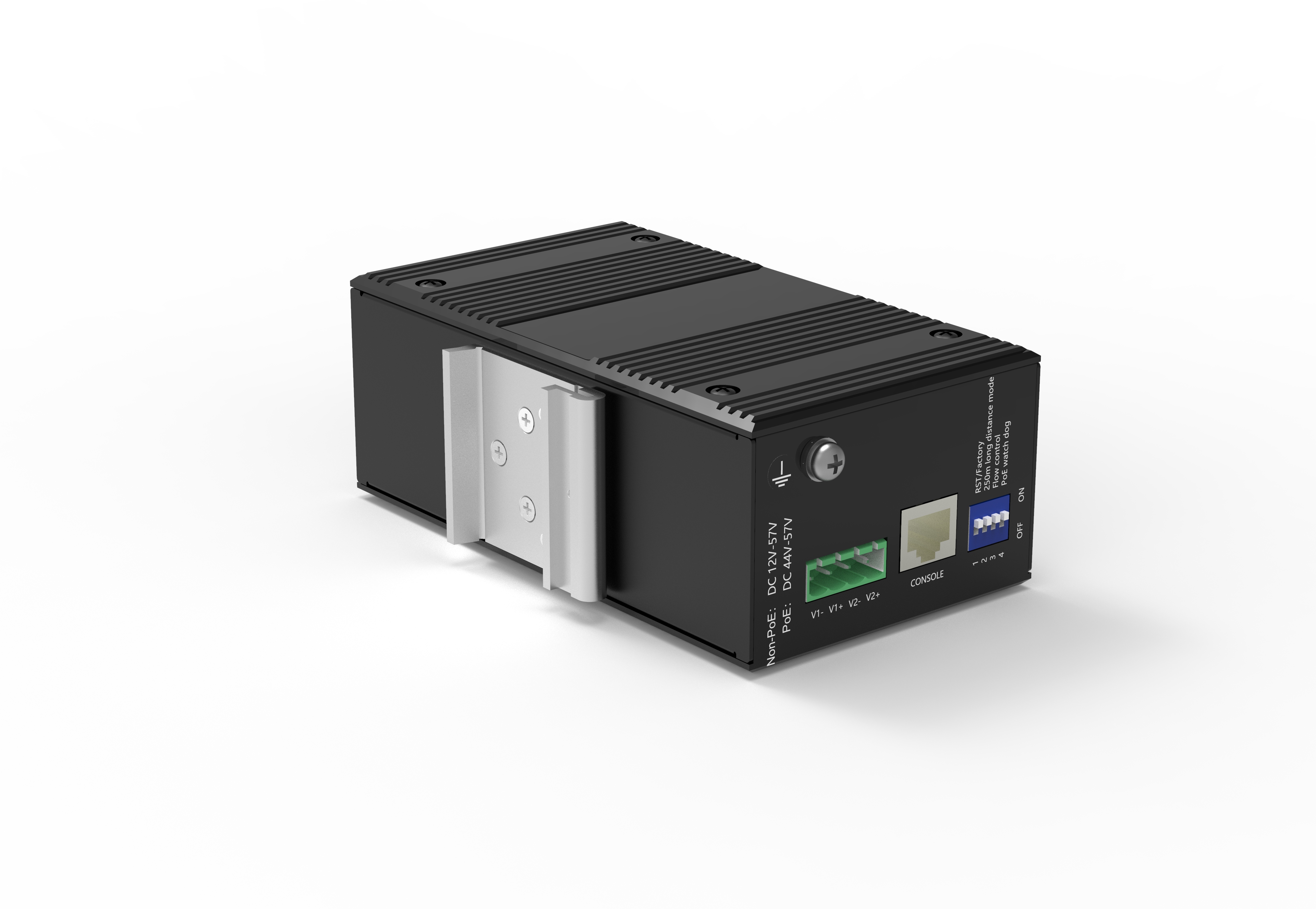

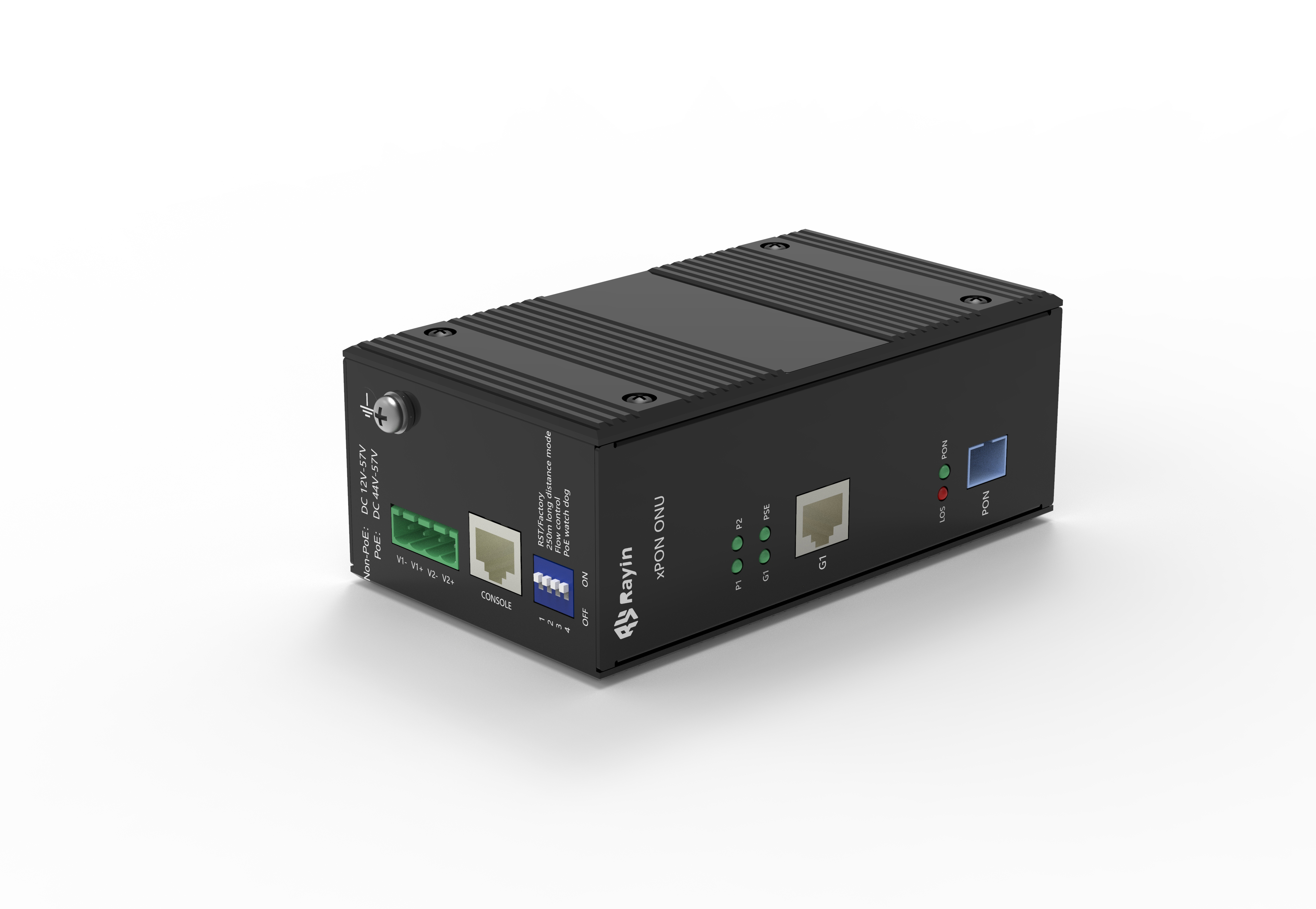

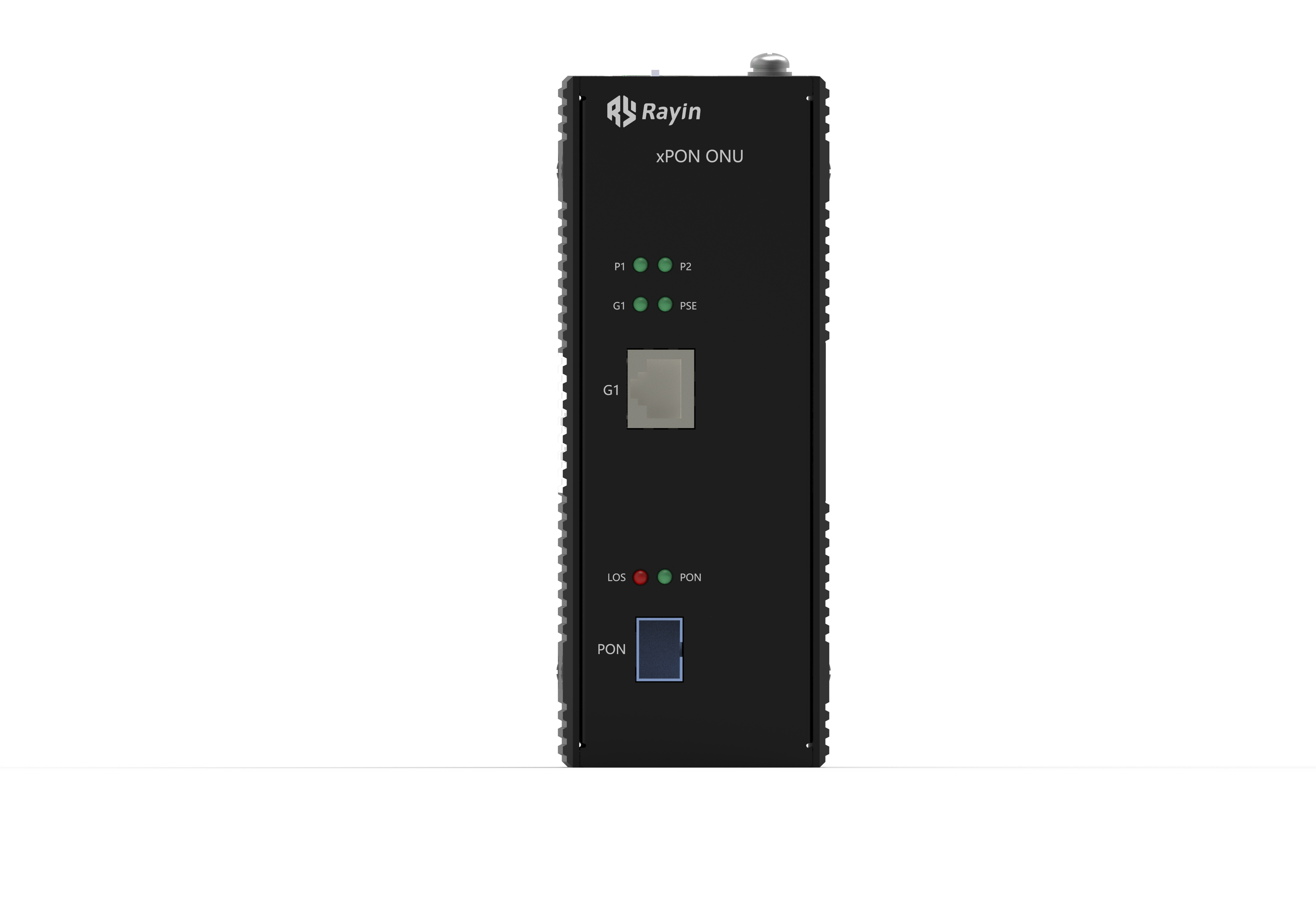

P1100I is a single-port industrial-grade xPON ONU supporting GPON/EPON dual-mode with PoE output (IEEE 802.3af/at). Ideal for IP video surveillance, Wi-Fi AP backhaul and industrial monitoring over PON.

    Advantages and Features

  • Supports 12V–57V DC (non-PoE) or 44–57V DC (PoE) input
  • EPON/GPON Adaptive
  • 30W POE output
  • Supports a wide operating temperature range of -40°C to 75°C

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

The P1100I is an industrial-grade single-port xPON ONU (Optical Network Unit) supporting both GPON and EPON dual-mode access, providing flexible deployment across different passive optical network infrastructures.

Its built-in PoE output (IEEE 802.3af/at) powers IP cameras and access points directly, while the wall-mount design fits compact deployment scenarios. Ideal for video surveillance, process monitoring and industrial communication over fiber, the P1100I delivers reliable, high-performance data transmission for FTTH, FTTO and enterprise PON networks.

PON interface
LAN port
LED connector
Power Specifications
Mechanical Properties
Work Environment
Industry standards
Warranty Policy
PON interface
Receiver sensitivity
-27dBm
Transmitted optical power
0 ~ +4dBm
Transmission distance
20KM
wavelength
Transmit at 1310 nm, receive at 1490 nm
Optical interface
SC/UPC connectors (SC/APC connectors available as an option)
LAN port
Quantity
1×GE（PoE）
rate
GE: 10/100/1000 Mbps auto-negotiating Ethernet interface, RJ45 connector; PoE: IEEE 802.3af/at
LED connector
LED indicator light
PWR、PON、INT、LOS、LAN、PSE
Power Specifications
Power supply
Supports 12V–57V DC (non-PoE) or 44–57V DC (PoE) input
Overcurrent protection
Support
Reverse connection protection
Support
Mechanical Properties
Housing
metal casing
Dimensions
5.512 × 2.126 × 3.150 inches (140 × 54 × 80 mm)
Weight
≤0.8kg
Installation
Wall-mounted installation
Work Environment
Operating temperature
-40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Industry standards
IEC 61000-4-2 (ESD)
Level 4 (contact discharge ±8 kV, air discharge ±15 kV)
IEC 61000-4-4（EFT）
Level 4 (Power supply: ±4 kV; Ethernet port: ±2 kV)
IEC 61000-4-5（Surge）DC
Level 4 (Power supply: ±4 kV common-mode, ±2 kV differential-mode; Ethernet port: ±6 kV common-mode, ±2 kV differential-mode)
Warranty Policy
Warranty Policy
3 years

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(1) Specification (1)
  • Name
    Type Language Version Release Date
  • P1100I Product Specification528.05 KB
    Specification English V1.1 2026-03-10

10/100/1000BaseT(X) ports, RJ45 connector
PoE port, 10/100/1000BaseT(X), RJ45 connector
power supply

P1100I
-
1
12–57V DC (Non-PoE) or 44–57V DC (PoE)
