RY-FPC-HD-200S

RY-FPC-HD-200S modular storage expansion unit for industrial control computers, supporting two 2.5-inch hard drives with RAID 0/1 and non-RAID modes. Expand industrial PC storage reliably.

    Advantages and Features

  • Supports up to two 2.5-inch SATA hard drives
  • The hard drive uses a SATA 3.0 interface
  • Supports RAID 0, RAID 1, and non-RAID mode
  • Supports fault diagnosis functionality
  • Supports power, status, hard drive read/write, health, and RAID mode indicators
  • The display interface supports remote updates.

Certification

  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

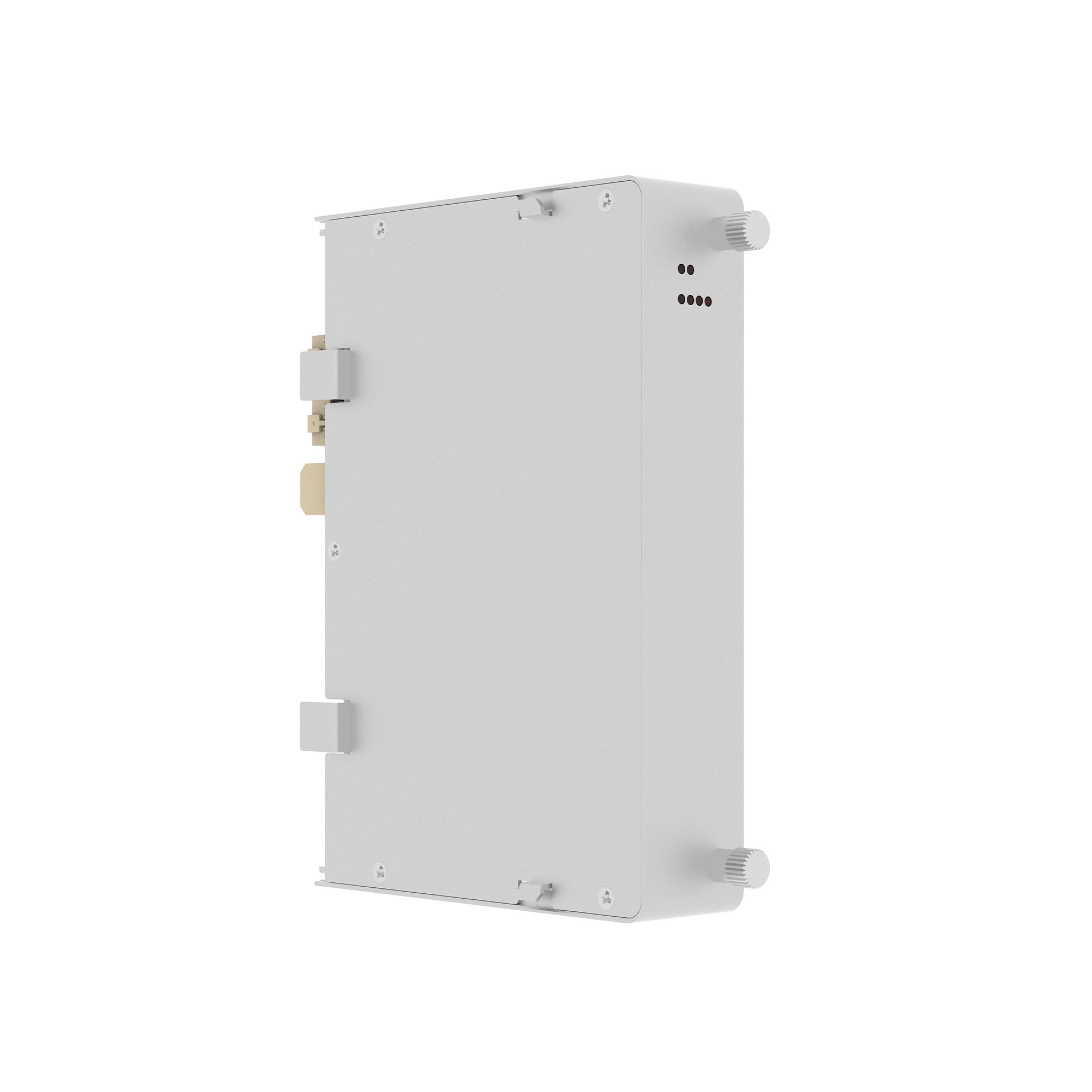

The RY-FPC-HD-200S is a modular storage expansion unit for industrial control computers, capable of accommodating two 2.5-inch hard drives. It supports RAID 0, RAID 1 and non-RAID modes, providing flexible and reliable data storage for industrial PC and modular computer systems.

Designed for the Rayin modular industrial computer platform, it is ideal for applications requiring high-capacity, high-reliability storage in manufacturing, transportation and energy environments.

Interface Information
Interface
2 x SATA III
RAID mode
RAID0/RAID1/SPARE
indicator light
1 x Power indicator, 1 x System activity indicator, 1 x Hard drive indicator, 1 x RAID mode indicator
System Support
Ubuntu/Kylin Embedded Edition/openEuler/NingSi
Power supply
Operating voltage
The back panel determines
Environment
Operating temperature
-20℃~+60℃
Storage temperature
-40℃~+80℃
Operating humidity
15%–95% RH (non-condensing)
Structure
Dimensions
150 x 126 x 28 mm
Product weight
0.3 kg
Housing material
Pure aluminum

Software firmware and drivers

  • Name
    Type Version System Release Date

Support Documentation

  • Name
    Type Language Version Release Date

Interfaces
Supported Systems
Enclosure Material

RY-FPC-HD-200S
2 x SATA III
Ubuntu Kylin Embedded Edition openEuler NeoKylin
Pure Aluminum
