IS228-24G4XS

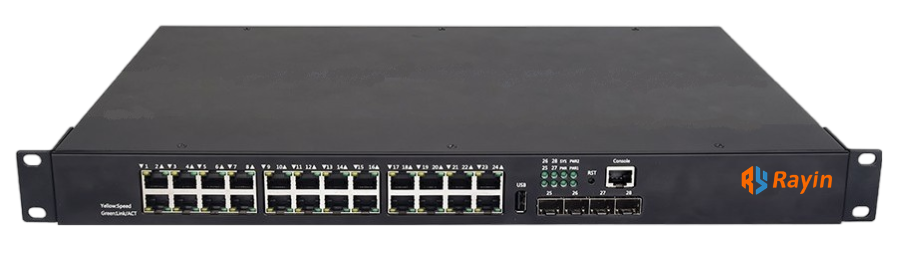

IS228E-24G4XS is a 28-port L2 managed industrial Ethernet switch with 24 GE ports and 4x10G SFP+ slots, dual power and rack-mount design. For large-scale industrial networks in manufacturing, energy and transportation.

    Advantages and Features

  • Supports 4 10-Gigabit SFP slots and 24 Gigabit Ethernet ports;
  • Utilizing patented Ring network technology, it supports single-ring, coupled-ring, chained-ring, and dual-homing ring network configurations, with an automatic network failure recovery time of less than 20 ms.
  • Supports a wide range of network protocols and industry standards, such as STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL, SNMP, and more
  • Supports two selectable input power sources: 12–57 VDC and 100–240 VAC/DC
  • Supports a wide operating temperature range of -40°C to 75°C

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

The IS228E-24G4XS is a 28-port Layer 2 managed industrial Ethernet switch combining 24 Gigabit Ethernet ports with 4x10G SFP+ uplink slots, providing high-capacity aggregation for large industrial networks.

Supporting both Gigabit and 10 Gigabit speeds, the IS228E series features dual power input (12-57VDC and 100-220VAC/DC) and a rack-mount design suitable for central control rooms, substations, factory floors and transportation hubs. With comprehensive L2 management (VLAN, QoS, STP/RSTP/MSTP, ERPS, IGMP Snooping, ACL, SNMP), it is ideal for manufacturing, energy and city infrastructure networks.

Ethernet interface
Ethernet Software Features
Switching characteristics
LED connector
Serial port
DIP Switch Configuration
Power Specifications
Mechanical Properties
Work Environment
Industry standards
Warranty Policy
Ethernet interface
10/100/1000BaseT(X) port (RJ45 connector)
24
10-Gigabit SFP slot
4
Ethernet Software Features
Filter
802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Agreement
Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Management
SNMP v1/v2c/v3 centralized device management, QoS, PoE, DHCP server, DHCP snooping, DHCP relay, static MAC addresses, LLDP, storm suppression, user passwords, login methods, file management, log management, port statistics
Safety
Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, port locking, RADIUS, SSH, SMTP over TLS
Time synchronization service
NTP Server/Client、SNTP
Switching characteristics
Switching capacity
One hundred and eight gigabits per second
Cache size
4MBit
MAC Table
16K
LED connector
LED indicator light
Power、Run、Alarm、Lan
Serial port
Console port
CLI command-line management port (RS-232), RJ45
DIP Switch Configuration
DIP switch
1. RST/Factory、2. 250m long distance mode、3. VLAN、4. QoS
Power Specifications
Input voltage
12–57 VDC redundant dual power supply input
Input voltage
100–240 VAC single-phase input
Overcurrent protection
Support
Reverse connection protection
Support
Connect
6-pin terminal block with 5.08 mm pitch (4 pins for power)
Mechanical Properties
Housing
IP40 protection rating, metal housing
Dimensions
441.6 mm × 43.8 mm × 309.3 mm (excluding mounting brackets)
Weight
≤4kg
Installation
1U rack-mount
Work Environment
Operating temperature
-40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Industry standards
IEC 61000-4-2 (ESD)
Level 4 (contact discharge ±8 kV, air discharge ±15 kV)
IEC 61000-4-4 (EFT)
Level 4 (Power supply: ±4 kV; Ethernet port: ±2 kV)
IEC 61000-4-5 (Surge) DC
Level 4 (Power supply: ±4 kV common-mode, ±2 kV differential-mode; Ethernet port: ±6 kV common-mode, ±2 kV differential-mode)
IEC 61000-4-5 (Surge) AC
Level 2 (Power supply: ±2 kV common-mode, ±2 kV differential-mode) Level 4 (Ethernet port: ±6 kV common-mode, ±2 kV differential-mode)
Warranty Policy
Warranty Policy
5 years

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(0)
  • Name
    Type Language Version Release Date

10/100/1000BaseT(X) ports, RJ45 connector
PoE port, 10/100/1000BaseT(X), RJ45 connector
10G SFP+ Slot
1000/2500Base SFP Port
100/1000Base SFP Slot
Power Supply

IS228-24G4XS-2P48
24
-
4
-
-
Dual 12–57V DC Power Supplies

IS228-24G4XS-1P220
24
-
4
-
-
Single 100–240VAC Power Supply
