L102P

2-Port GPON OLT | FTTM | Low Capacity | Minimalist Design

    Advantages and Features

  • FTTM Minimalist Scenario Applications
  • Plug-and-play
  • Easy to maintain
  • Supports a wide operating temperature range of -25°C to 65°C

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

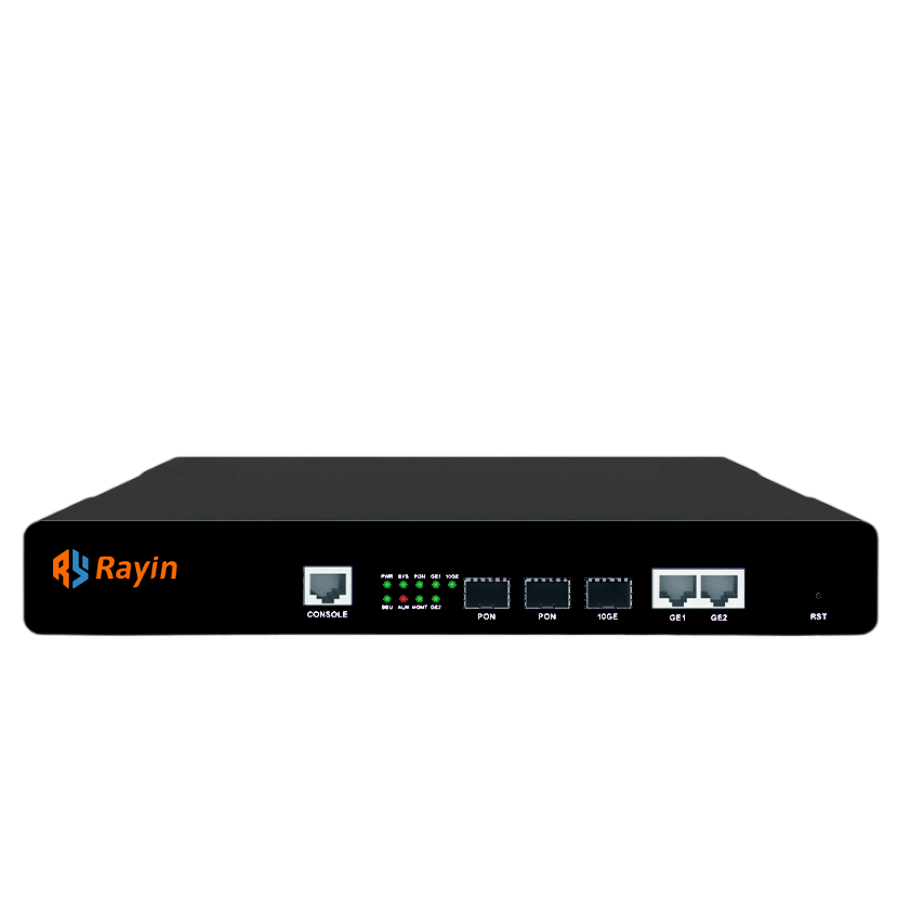

The P102P is equipped with 2 GPON ports, 1 SFP+ uplink port, and 2 Ethernet ports, striking a balance between cost, size, and functionality. Designed to deliver high-performance broadband services for PON network deployment in low-density areas,it effectively meets the new requirements of operators' network deployment plans.

GPON Port
Uplink Port
Management Port
Power Supply
Mechanical Properties
Work Environment
Warranty Policy
GPON Port
QTY
2
Physical interface
SFP slot
Supported PON module types
Class C++/Class C+++/Class C++++
Maximum beam splitting ratio
1:128
Uplink Port
QTY
3
RJ45 (GE)
2
SFP+ (10GE)
1
Management Port
Management Port
1 x 10/100/1000 Mbps BASE-T out-of-band management port, 1 x console port
Power Supply
AC power
Operating voltage range: 100–240 V, Rated voltage: 110 V/220 V
DC power supply
Operating voltage range: -36 to -75 V, rated voltage: -48 V/-60 V
Mechanical Properties
Housing
metal casing
Dimensions
310mm(L)*190mm(W)*44mm(H)
Weight
≤2kg
Installation
1U rack-mount
Work Environment
Operating temperature
-25 to 65°C (-13°F to 149°F)）
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Warranty Policy
Warranty Policy
3 years
