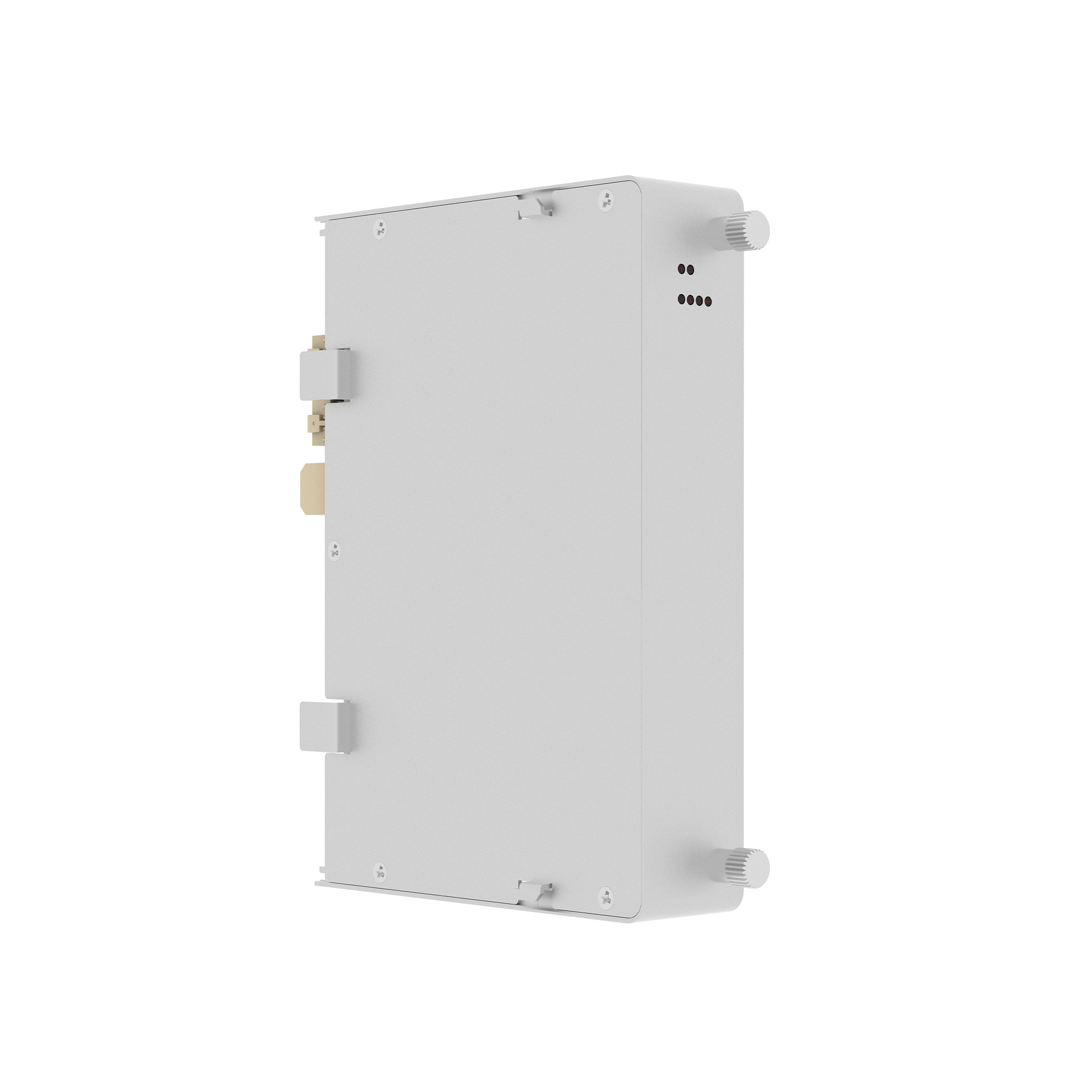

RY-FPC-HD-200S

Modular storage expansion unit for industrial control computers, capable of accommodating two 2.5-inch hard drives. It supports RAID 0, RAID 1, and non-RAID modes, and features self-diagnostic capabilities to meet the demand for high-capacity, reliable st

    Advantages and Features

  • Supports up to two 2.5-inch SATA hard drives
  • The hard drive uses a SATA 3.0 interface
  • Supports RAID 0, RAID 1, and non-RAID mode
  • Supports fault diagnosis functionality
  • Supports power, status, hard drive read/write, health, and RAID mode indicators
  • The display interface supports remote updates.

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

Modular storage expansion unit for industrial control computers, capable of accommodating two 2.5-inch hard drives. It supports RAID 0, RAID 1, and non-RAID modes, and features self-diagnostic capabilities to meet the demand for high-capacity, reliable storage.

Interface Information
Power supply
Environment
Structure
Interface Information
Interface
2 x SATA III
RAID mode
RAID0/RAID1/SPARE
indicator light
1 x Power indicator, 1 x System activity indicator, 1 x Hard drive indicator, 1 x RAID mode indicator
System Support
Ubuntu/Kylin Embedded Edition/openEuler/NingSi
Power supply
Operating voltage
The back panel determines
Environment
Operating temperature
-20℃~+60℃
Storage temperature
-40℃~+80℃
Operating humidity
15%–95% RH (non-condensing)
Structure
Dimensions
150 x 126 x 28 mm
Product weight
0.3 kg
Housing material
Pure aluminum

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(0)
  • Name
    Type Language Version Release Date

Interfaces
Supported Systems
Enclosure Material

RY-FPC-HD-200S
2 x SATA III
Ubuntu Kylin Embedded Edition openEuler NeoKylin
Pure Aluminum
