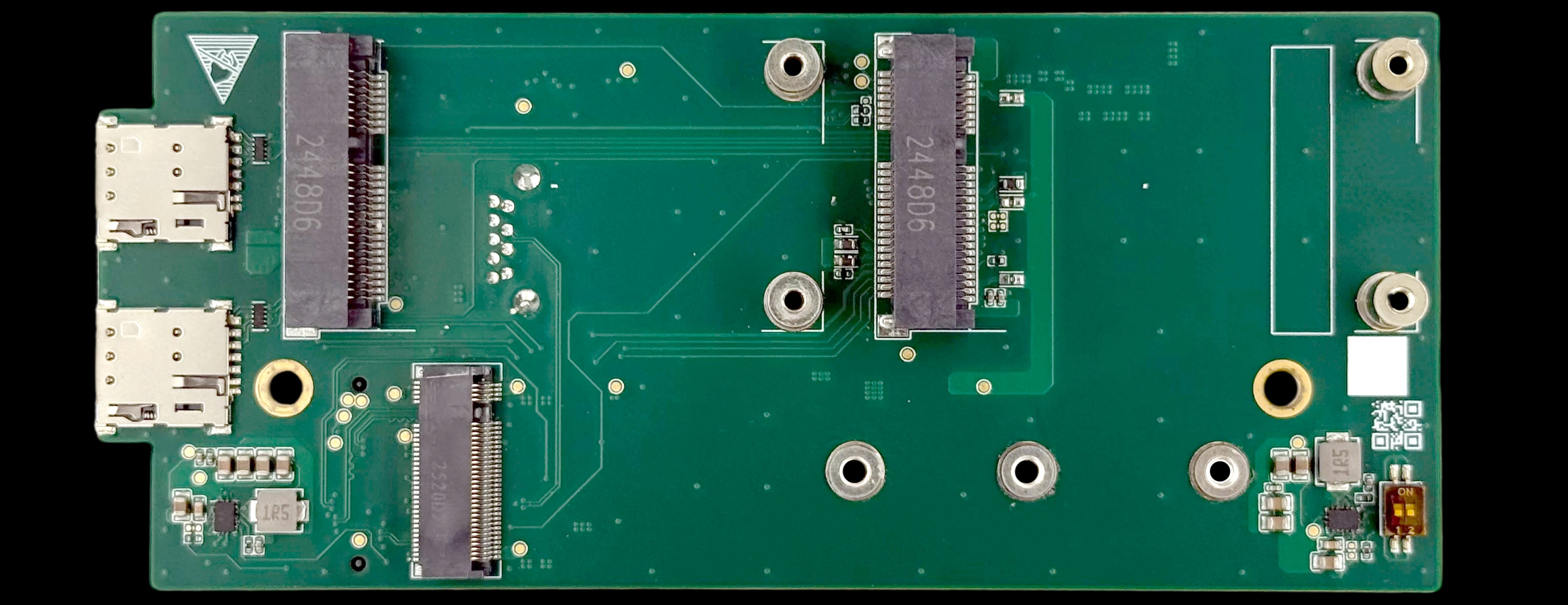

RY-PACK-FPC-EX-I

This PACK board is a key component for expanding the internal interfaces of a modular industrial control computer’s CPU unit. It utilizes the high-speed expansion interfaces reserved within the CPU unit to add one MiniPCIe slot, one mSATA slot, one M.2 sl

    Advantages and Features

  • Supports one Mini-PCIe expansion slot for adding 4G/5G, Wi-Fi, and other functional modules
  • Supports one mSATA expansion slot, which can be used to add an mSATA drive or as a MiniPCIe slot
  • Supports one M.2 Key M 2242/2260/2280 slot for expanding NVMe or AI modules
  • Supports expansion via one USB 2.0 Type-A port, allowing for internal expansion with components such as UKey.

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

This PACK board is a key component for expanding the internal interfaces of a modular industrial control computer’s CPU unit. It utilizes the high-speed expansion interfaces reserved within the CPU unit to add one MiniPCIe slot, one mSATA slot, one M.2 slot, and one USB 2.0 Type-A port, thereby making the CPU unit suitable for a wider range of applications.

Interface Features
Power supply
Environment
Structure
Interface Features
M.2
1 x M.2 M Key 2242/2280/2260
Mini PCIe
1 x Mini PCIe (full-height) (Signal: USB)
mSATA
1 x full-height mSATA (can be used as MiniPCIe)
USB
1 x USB 2.0 (Type-A)
Power supply
Maximum power consumption
12 W
Environment
Operating temperature
-40℃~+85℃
Storage temperature
-30℃~+80℃
Operating humidity
15%–95% RH (non-condensing)
Structure
Dimensions
140 x 70 x 18 mm
Product weight
≤0.1 kg

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(0)
  • Name
    Type Language Version Release Date

M.2
Mini PCIe
mSATA
USB

RY-PACK-FPC-EX-I
1 x M.2 M Key 2242/2280/2260
1 × Full-Height Mini PCIe (Signal: USB)
1 × Full-Height mSATA (Can Be Repurposed as Mini
1 x USB 2.0 （Type-A ）
