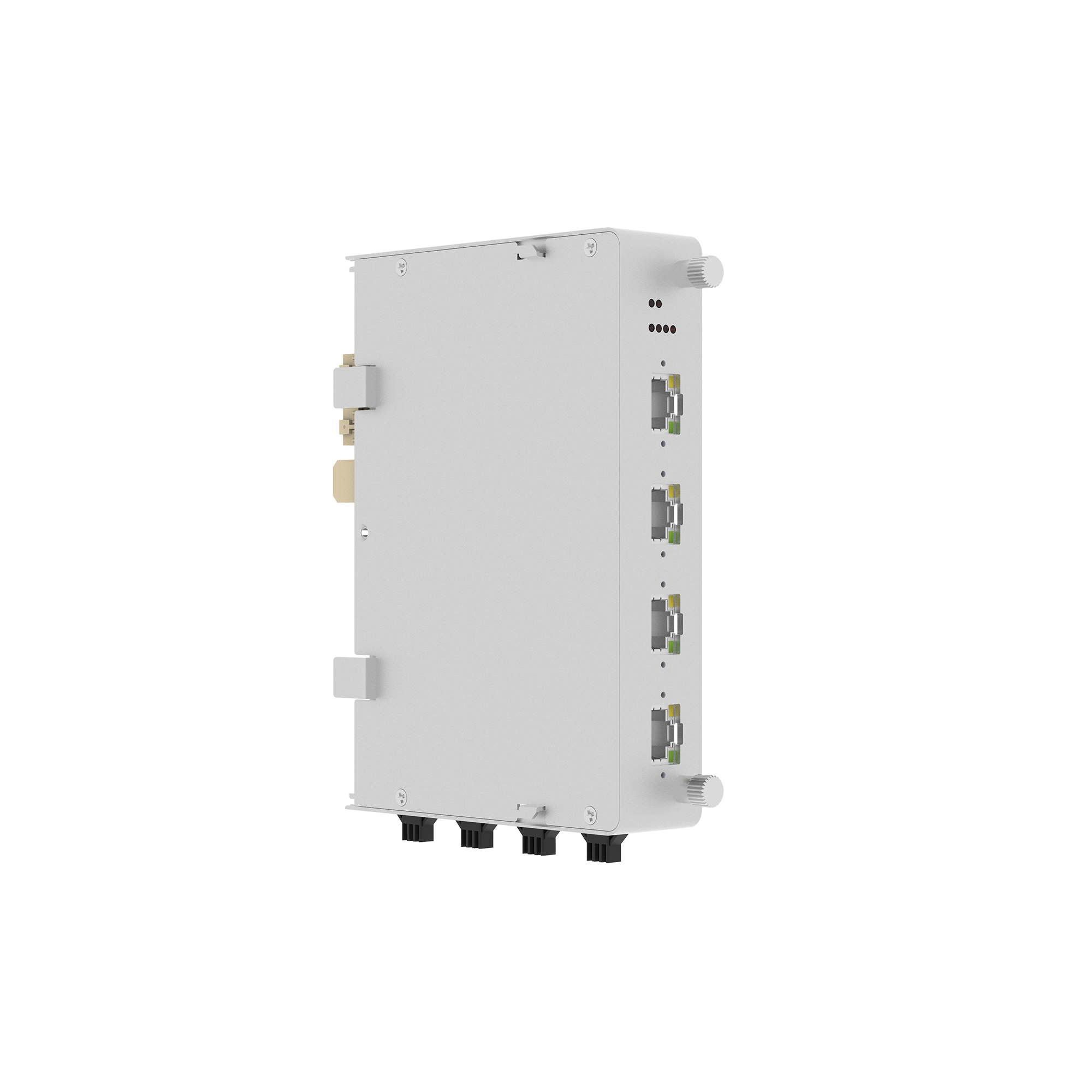

RY-FPC-NT-400P-LD

As a network component serving as a node in a modular system, the POE unit integrates multiple POE ports, DI/DO channels, and lighting control channels into a single device. Featuring a fully isolated design, it is compact, powerful, and safe and reliable

    Advantages and Features

  • Industrial-grade fully isolated design
  • Features 4 adaptive Gigabit PoE ports, with up to 15W per port
  • Features 8 channels of multifunction digital inputs (DI) and 8 channels of digital outputs (DO)
  • Supports 4 constant-current light source interfaces with 255 dimming levels
  • Features a trigger control interface for light sources, with a single-channel output power of up to 15W

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

As a network component serving as a node in a modular system, the POE unit integrates multiple POE ports, DI/DO channels, and lighting control channels into a single device. Featuring a fully isolated design, it is compact, powerful, and safe and reliable.

LAN
DI
DO
Light-triggered
Light Source Interface
indicator light
Power supply
Environment
Structure
LAN
Compatibility
IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
rate
10/100/1000 Mbps
Passage
4
Connector
RJ45
Supports POE
Yes
POE Power
48 VDC PoE power output, maximum power per channel: 15 W, total power: 4x9 W
DI
Passage
8
Sensor Type
Dry contact / Wet contact
Rated voltage
24 VDC
Connector
Phoenix Terminals
DO
Passage
8
Output Type
OD (Open-Drain Output)
Rated current
200 mA
Rated voltage
24 VDC
Connector
Phoenix Terminals
Light-triggered
Trigger Channel
4
Sensor Type
Dry contact / Wet contact
Rated voltage
24 VDC
Connector
Phoenix Terminals
Light Source Interface
Passage
4
Control Method
Constant-current source
Adjustable brightness levels
255
Output voltage
14 VDC~24 VDC
Maximum current
1A
Connector
SM-3P
indicator light
Number and Types of Indicator Lights
6 (1× power indicator, 1× status indicator, 4× PoE power indicator)
Power supply
Input voltage
24 VDC ± 10%
Connector
Phoenix Terminals
Environment
Operating temperature
-20℃~+60℃
Storage temperature
-40℃~+85℃
Operating humidity
15%–95% RH (non-condensing)
Structure
Dimensions
150×126×28 mm
Product weight
0.3 kg

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(0)
  • Name
    Type Language Version Release Date

10/100/1000BaseT(X) ports, RJ45 connector
PoE port, 10/100/1000BaseT(X), RJ45 connector
power supply

RY-FPC-NT-400P-LD
-
4
24 VDC ± 10%
