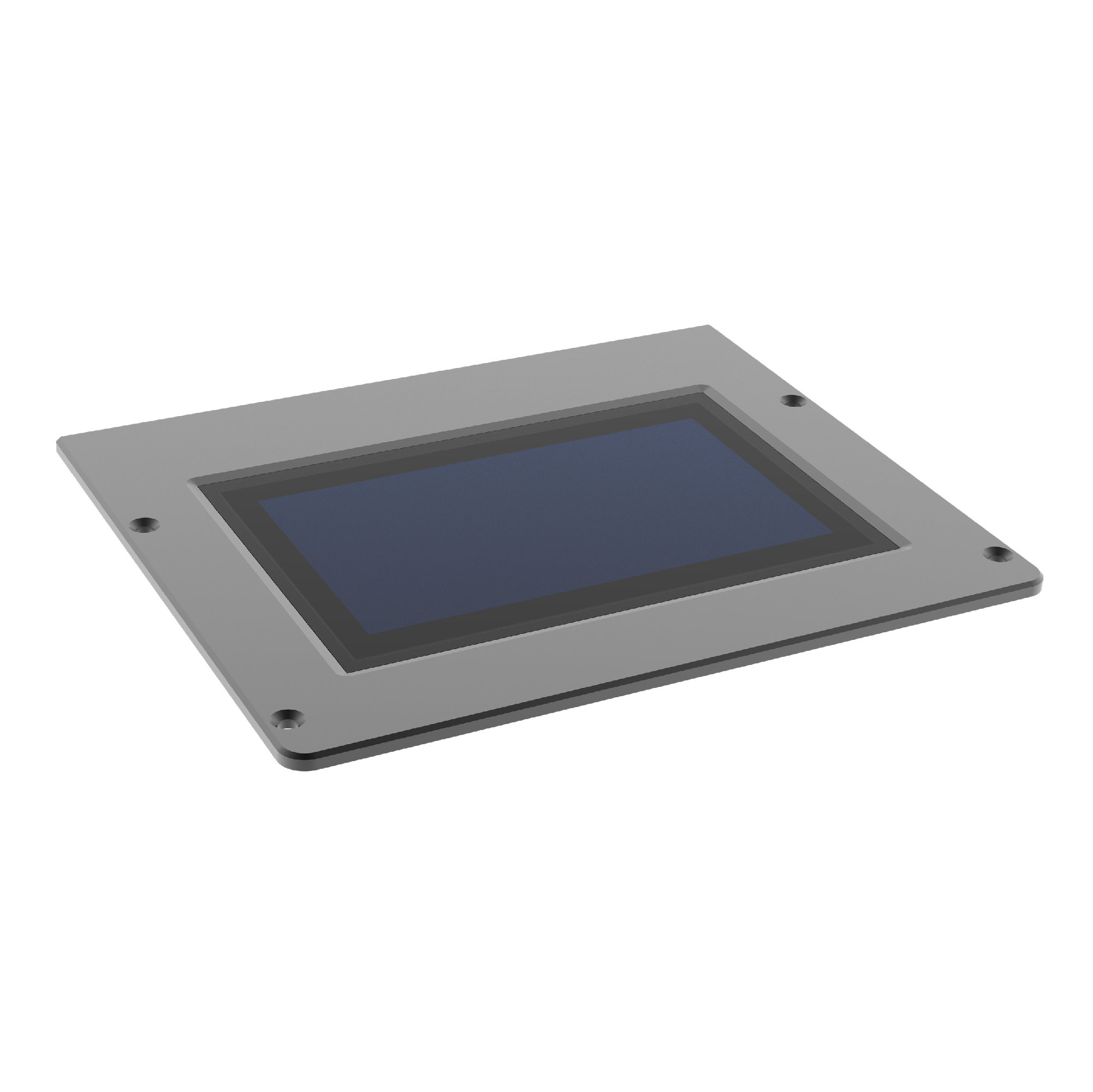

RY-FPC-HM-043

RY-FPC-HM-043 is a 4.3-inch industrial-grade touchscreen accessory for modular industrial PCs, 480x272 resolution, designed for HMI control and compact industrial display applications.

    Advantages and Features

  • It offers flexible configuration options and can be used with expansion units such as CPU modules and multi-serial port cards.
  • Powerful, capable of running Lua scripts and industrial protocols
  • Easy to develop; users can design interfaces simply by dragging and dropping, with a true WYSIWYG experience.
  • Responsive touch, vibrant display, optical bonding design, light transmittance >90%
  • Multilingual support, with up to 15 languages from countries around the world pre-installed, and one-click switching
  • The display interface supports remote updates.

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

The RY-FPC-HM-043 is a 4.3-inch industrial-grade touchscreen accessory for modular industrial PCs, with a resolution of 480x272. It provides a compact HMI (Human-Machine Interface) display for control panels and embedded industrial applications.

Built for industrial reliability, it is suitable for machine control, equipment monitoring and compact operator interface applications in manufacturing and automation environments.

Basic Information
Screen
Touch
External interfaces
Power supply
Environment
Structure
Software
Basic Information
processor
SOC
Storage space
128 MB
Start time
<1s
Screen
Display Type
TFT
Screen size
4.3 inches
Screen aspect ratio
16:9
Display area
95 x 53.9 mm
resolution
480 x 272
Color
65K
Backlight Type
ELED
Contrast
500:1
Brightness
300 nit
Perspective
140/90 °
Touch
Touch type
Capacitive (P-CAP)
Number of touch points
Single point
Light transmittance
0.9
Using optical bonding technology
Yes
Glass hardness
6 H
External interfaces
TF card slot
Maximum capacity: 32 GB; File system: FAT32
Power supply
Operating voltage
5 VDC
Maximum power consumption
1 W
Environment
Operating temperature
-20°C to +70°C
Storage temperature
-30°C to +80°C
Operating humidity
10%–65% RH (non-condensing)
Structure
Dimensions
150 x 126 x 9.8 mm
Product weight
≤0.5 kg
Software
Configuration commands
Dedicated configuration commands
Communication Protocol
Modbus RTU、XGUS
Script support
Supports Lua version 5.3, capable of executing user logic, protocols, and algorithms
Software Development
VisualTFT
Graphics Upgrade
Supports remote updates for screens, images, font libraries, and firmware
Font support
Built-in vector fonts, anti-aliased edges, and support for ASCII, GBK, GB2312, and Unicode character sets of any size
Supported image formats
JPEG、PNG

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(0)
  • Name
    Type Language Version Release Date

Screen Size
Touch Type
Communication Protocol
Supported Image Formats

RY-FPC-HM-043
4.3-inch
Capacitive (P-CAP)
Modbus RTU、XGUS
JPEG、PNG
