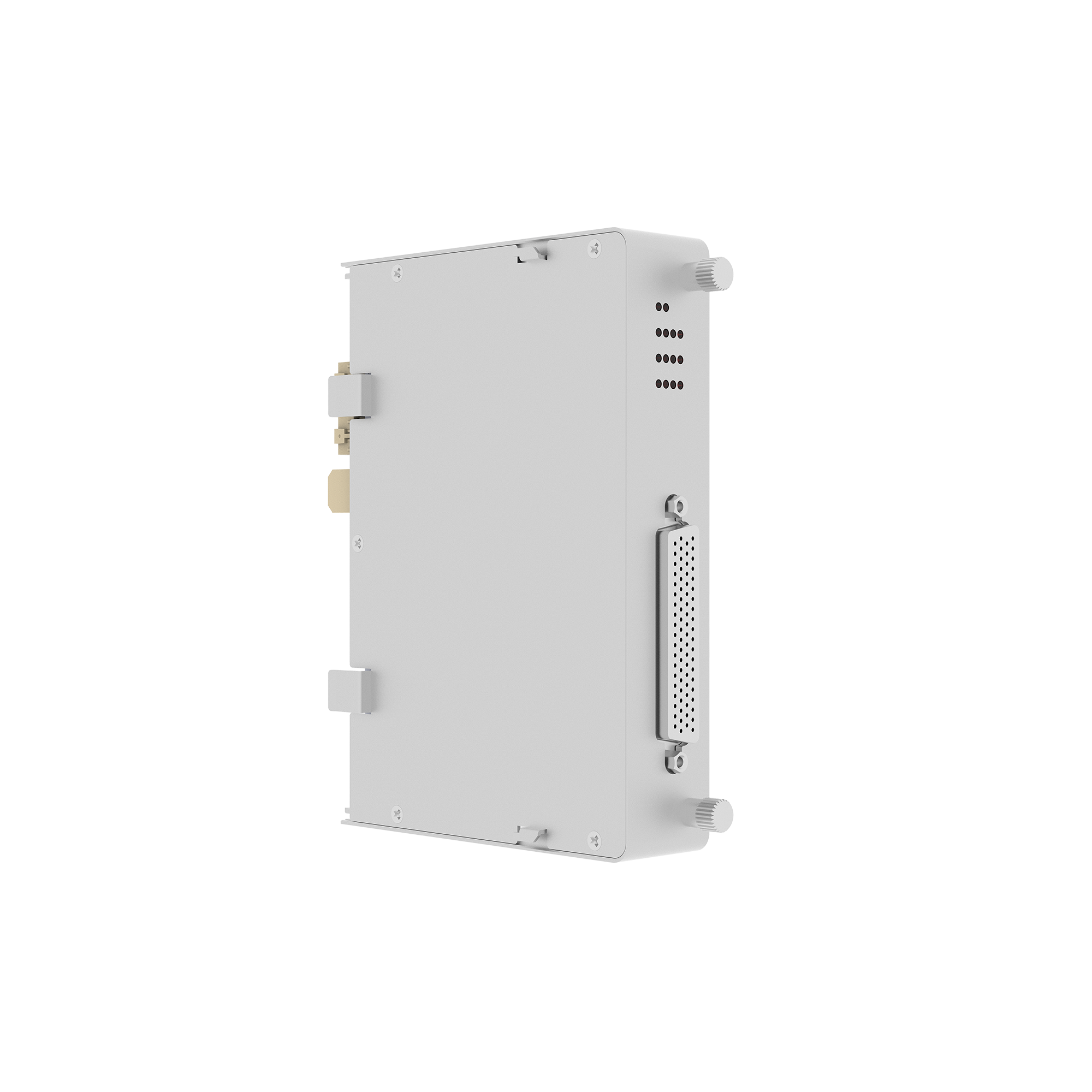

RY-FPC-SP-800P-D

RY-FPC-SP-800P-D multi-serial port card expands serial connectivity for modular industrial computers via high-speed backplane bus. Add RS232/RS485/RS422 serial ports for legacy industrial devices.

    Advantages and Features

  • Provides 8 or 11 isolated serial ports, 2 of which can be configured as full-featured RS-232 serial ports
  • Each multifunction serial port can be configured to operate in RS-232, RS-485, or RS-422 mode
  • The serial transmission rate can reach up to 921.6 kbps
  • Each serial port is equipped with data transmission and reception indicator lights
  • Each serial port is equipped with a terminating resistor that can be enabled
  • Features 8 channels of multifunction digital inputs (DI) and 8 channels of digital outputs (DO)

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

The RY-FPC-SP-800P-D multi-serial port card is a serial port expansion module for modular industrial computers. It uses a high-speed backplane bus to provide the CPU unit with additional serial ports for connecting legacy industrial devices.

Supporting RS232/RS485/RS422 serial communication, it is ideal for factory automation, machine tools, PLCs and other industrial equipment that require reliable serial connectivity.

Serial port
DI
DO
indicator light
Power supply
Environment
Structure
Serial port
Number of channels
8
Controller
Compatible with 16C550
Interface Pattern
RS-232/RS-485/RS-422
rate
300 bps ~ 921600 bps
data bit
5、6、7、8
Check digit
No parity, odd parity, even parity
Stop bit
1、2
FIFO
128 bytes
Connector
DB78 female connector (can be converted to a DB9 male connector using an adapter)
Isolation and Protection
Yes
Terminating resistor
Yes
DI
Sensor Type
Dry contact / Wet contact
Rated voltage
24 VDC
Connector
Phoenix Terminals
DO
Connector
Phoenix Terminals
Number of channels
8
Output Type
OD
Rated current
200 mA
Rated voltage
24 VDC
indicator light
indicator light
14 (12 x serial transmit/receive indicators, 1 x status indicator, 1 x power indicator)
Power supply
Input voltage
The back panel determines
Connector
CPCIe
Environment
Operating temperature
-20℃~+60℃
Storage temperature
-40℃~+85℃
Operating humidity
15%–95% RH (non-condensing)
Structure
Dimensions
150×126×28 mm
Product weight
0.3 kg

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(0)
  • Name
    Type Language Version Release Date

Serial Port Channels
Digital Input (DI) Channels
Digital Output (DO) Channels

RY-FPC-SP-800P-D
8
8
8
