RY-PACK-FPC-EX-I

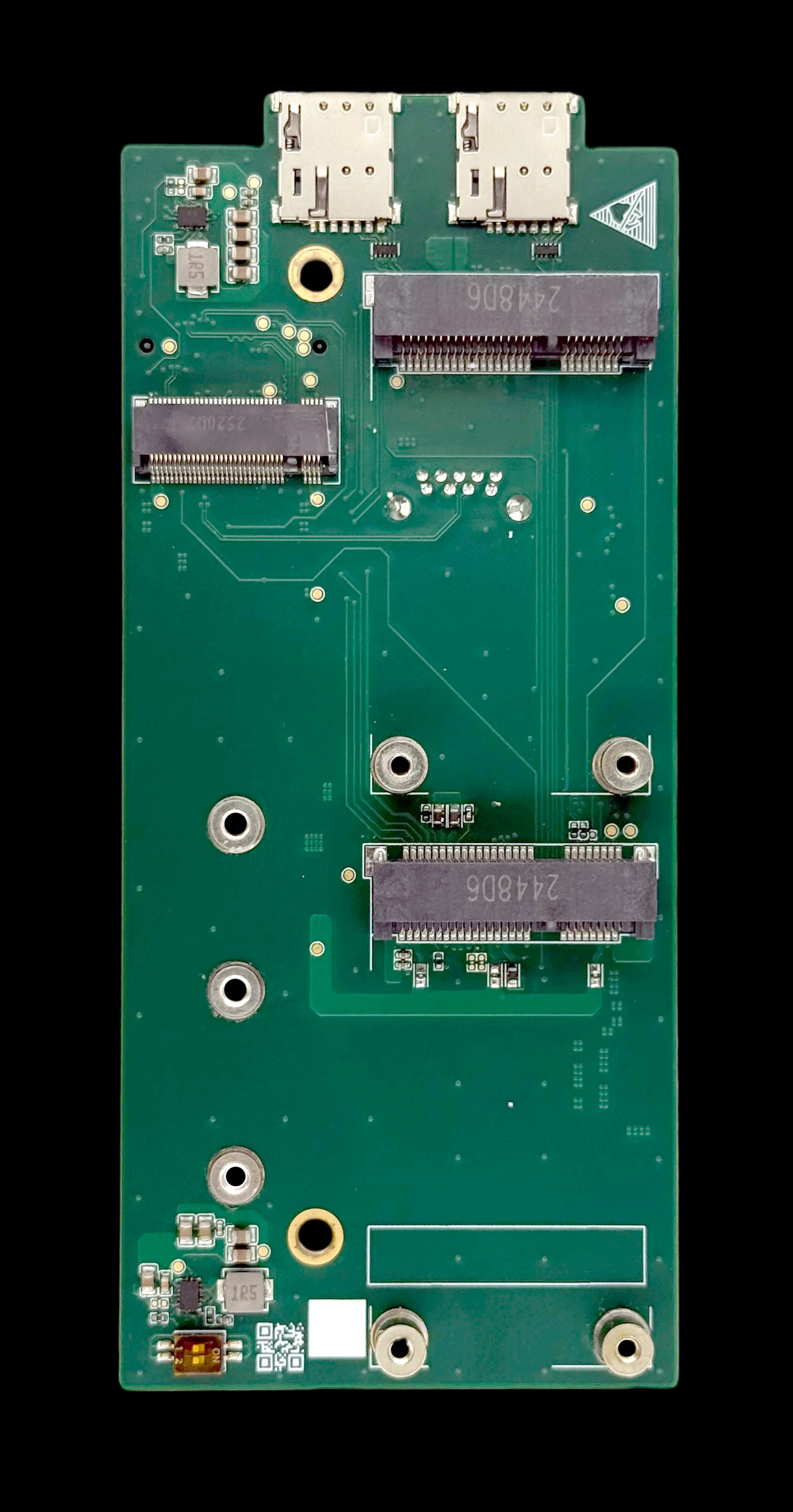

RY-PACK-FPC-EX-I PACK board expands the internal interfaces of a modular industrial control computer CPU unit, enabling flexible I/O expansion for industrial PCs and embedded control systems.

    Advantages and Features

  • Supports one Mini-PCIe expansion slot for adding 4G/5G, Wi-Fi, and other functional modules
  • Supports one mSATA expansion slot, which can be used to add an mSATA drive or as a MiniPCIe slot
  • Supports one M.2 Key M 2242/2260/2280 slot for expanding NVMe or AI modules
  • Supports expansion via one USB 2.0 Type-A port, allowing for internal expansion with components such as UKey.

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

The RY-PACK-FPC-EX-I is a PACK board that expands the internal interfaces of a modular industrial control computer CPU unit. It uses high-speed expansion interfaces to connect additional modules, enabling flexible I/O configuration for industrial PCs and embedded control systems.

As a key building block of the Rayin modular industrial computer architecture, it supports rapid, customizable system configuration for factory automation, edge computing and industrial IoT applications.

Interface Features
Power supply
Environment
Structure
Interface Features
M.2
1 x M.2 M Key 2242/2280/2260
Mini PCIe
1 x Mini PCIe (full-height) (Signal: USB)
mSATA
1 x full-height mSATA (can be used as MiniPCIe)
USB
1 x USB 2.0 (Type-A)
Power supply
Maximum power consumption
12 W
Environment
Operating temperature
-40℃~+85℃
Storage temperature
-30℃~+80℃
Operating humidity
15%–95% RH (non-condensing)
Structure
Dimensions
140 x 70 x 18 mm
Product weight
≤0.1 kg

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(0)
  • Name
    Type Language Version Release Date

M.2
Mini PCIe
mSATA
USB

RY-PACK-FPC-EX-I
1 x M.2 M Key 2242/2280/2260
1 × Full-Height Mini PCIe (Signal: USB)
1 × Full-Height mSATA (Can Be Repurposed as Mini
1 x USB 2.0 （Type-A ）
