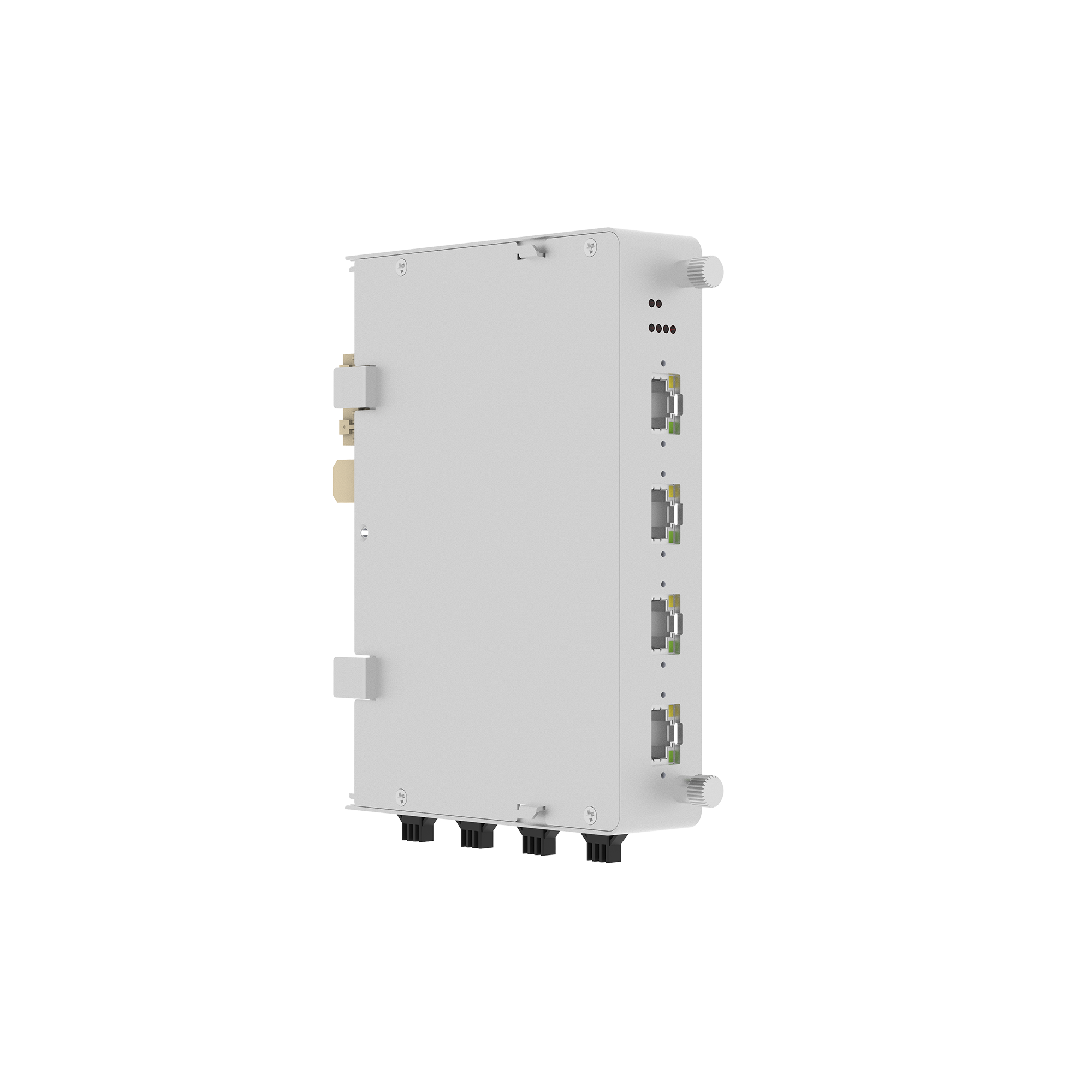

RY-FPC-NT-400P-LD

RY-FPC-NT-400P-LD PoE network card integrates multiple PoE ports, DI/DO channels and lighting control into one modular industrial computer node, for powering cameras and field devices.

    Advantages and Features

  • Industrial-grade fully isolated design
  • Features 4 adaptive Gigabit PoE ports, with up to 15W per port
  • Features 8 channels of multifunction digital inputs (DI) and 8 channels of digital outputs (DO)
  • Supports 4 constant-current light source interfaces with 255 dimming levels
  • Features a trigger control interface for light sources, with a single-channel output power of up to 15W

Certification

  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

The RY-FPC-NT-400P-LD is a PoE network card serving as a node in a modular industrial computer system. It integrates multiple PoE ports, DI/DO channels and lighting control channels into a single module.

This all-in-one design simplifies wiring and reduces space in applications such as intelligent lighting, IP camera powering and building automation, making it ideal for smart building and industrial IoT deployments.

LAN
Compatibility
IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
rate
10/100/1000 Mbps
Passage
4
Connector
RJ45
Supports POE
Yes
POE Power
48 VDC PoE power output, maximum power per channel: 15 W, total power: 4x9 W
DI
Passage
8
Sensor Type
Dry contact / Wet contact
Rated voltage
24 VDC
Connector
Phoenix Terminals
DO
Passage
8
Output Type
OD (Open-Drain Output)
Rated current
200 mA
Rated voltage
24 VDC
Connector
Phoenix Terminals
Light-triggered
Trigger Channel
4
Sensor Type
Dry contact / Wet contact
Rated voltage
24 VDC
Connector
Phoenix Terminals
Light Source Interface
Passage
4
Control Method
Constant-current source
Adjustable brightness levels
255
Output voltage
14 VDC~24 VDC
Maximum current
1A
Connector
SM-3P
indicator light
Number and Types of Indicator Lights
6 (1× power indicator, 1× status indicator, 4× PoE power indicator)
Power supply
Input voltage
24 VDC ± 10%
Connector
Phoenix Terminals
Environment
Operating temperature
-20℃~+60℃
Storage temperature
-40℃~+85℃
Operating humidity
15%–95% RH (non-condensing)
Structure
Dimensions
150×126×28 mm
Product weight
0.3 kg

Software firmware and drivers

  • Name
    Type Version System Release Date

Support Documentation

  • Name
    Type Language Version Release Date

10/100/1000BaseT(X) ports, RJ45 connector
PoE port, 10/100/1000BaseT(X), RJ45 connector
power supply

RY-FPC-NT-400P-LD
-
4
24 VDC ± 10%
