IS202 Series

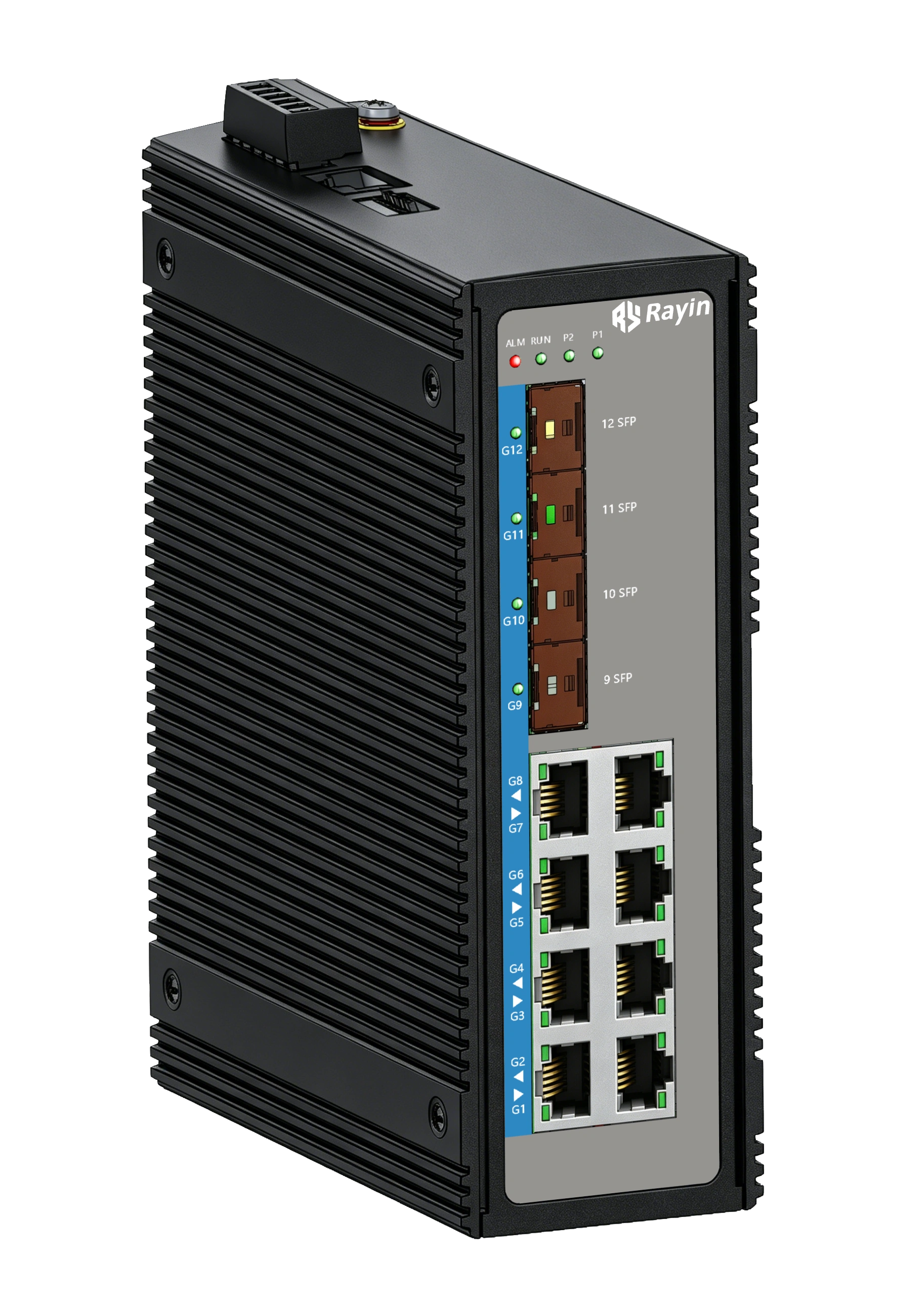

IS202 series is a 10/12-port full gigabit L2 managed industrial PoE switch for IP surveillance and industrial networking. Gigabit PoE+ ports, wide temperature, DIN rail mount and reliable ring redundancy.

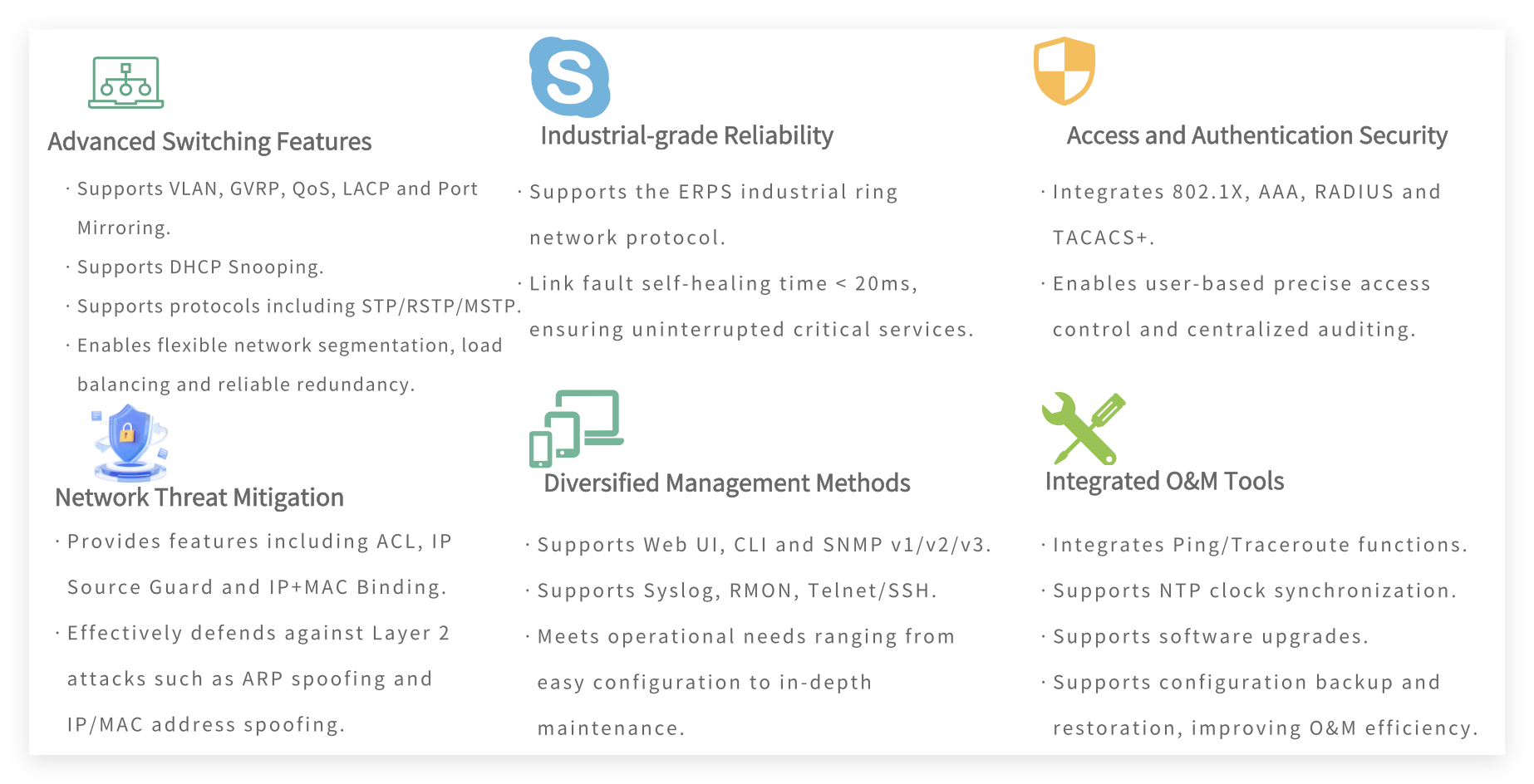

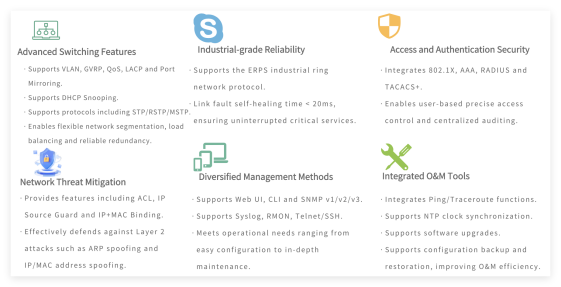

    Advantages and Features

  • Supports 4 Gigabit SFP slots and 8 Gigabit PoE ports;

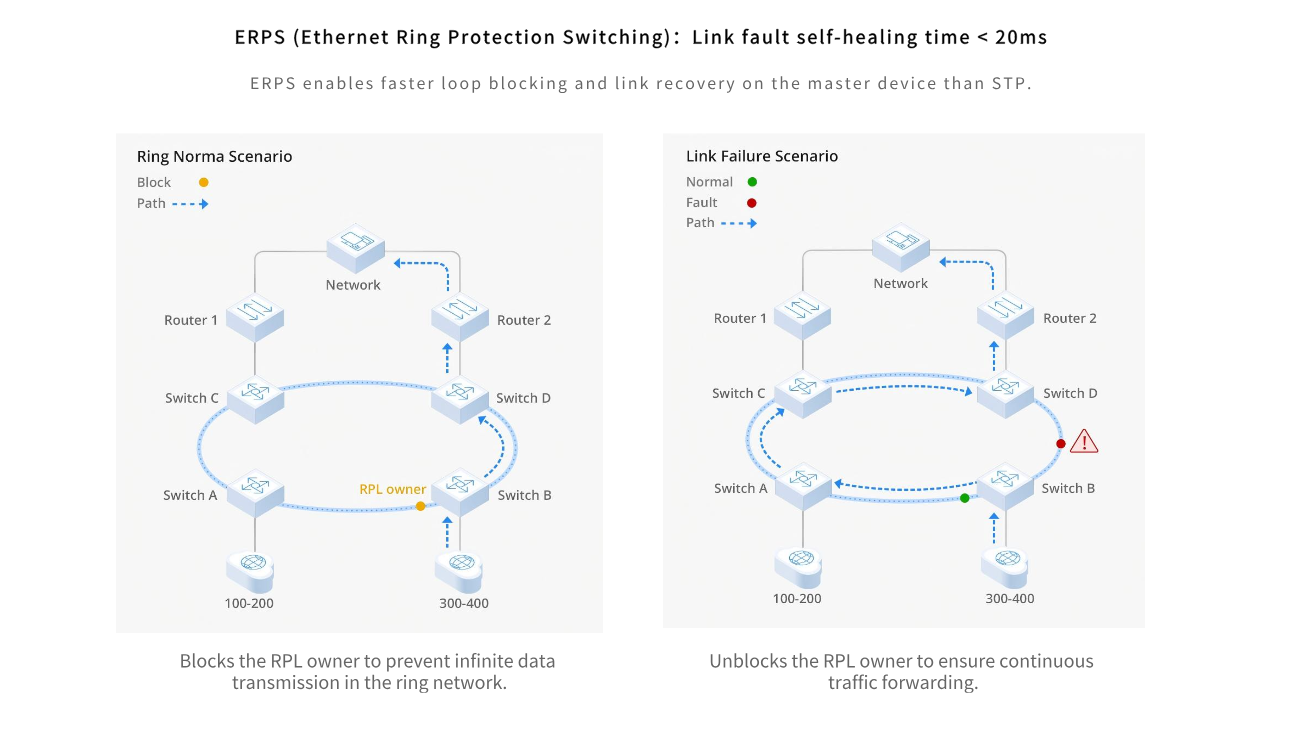

  • Utilizing patented Ring network technology, it supports single-ring, coupled-ring, chained-ring, and dual-homing ring network configurations, with an automatic network failure recovery time of less than 20 ms.
  • Supports a wide range of network protocols and industry standards, such as STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL, SNMP, and more
  • The maximum power consumption of a single-port POE is 30W
  • Input voltage: 48–57 VDC
  • Supports a wide operating temperature range of -40°C to 75°C

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

The IS202 series is a family of 10/12-port full-gigabit Layer 2 managed industrial PoE switches, designed to power and connect IP cameras, wireless access points and industrial IoT devices in demanding environments.

Featuring Gigabit PoE+ ports, wide-temperature operation, DIN-rail mounting and reliable ring redundancy, the IS201 series is well suited for video surveillance, factory automation, smart city and outdoor networking projects where cost-effective managed PoE is required.


Ethernet interface
Ethernet Software Features
Switching characteristics
LED connector
Serial port
DIP Switch Configuration
Power Specifications
Mechanical Properties
Work Environment
Industry standards
Warranty Policy
Ethernet interface
10/100/1000BaseT(X) port (PoE)
8
Gigabit SFP slot
4
Ethernet Software Features
Filter
802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Agreement
Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Management
SNMP v1/v2c/v3 centralized device management, QoS, PoE, DHCP server, DHCP snooping, DHCP relay, static MAC addresses, LLDP, storm suppression, user passwords, login methods, file management, log management, port statistics
Safety
Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, port locking, RADIUS, SSH, SMTP over TLS
Time synchronization service
NTP Server/Client、SNTP
Switching characteristics
Switching capacity
24Gbps
Cache size
4MBit
MAC Table
16K
LED connector
LED indicator light
Power indicator, alarm indicator, power indicator, interface indicator
Serial port
Console port
CLI command-line management port (RS-232), RJ45
DIP Switch Configuration
DIP switch
1. RST/Factory、2. 250m long distance mode、3. VLAN、4. QoS
Power Specifications
Input voltage
48–57 VDC redundant dual power supply input
Overcurrent protection
Support
Reverse connection protection
Support
Connect
6-pin terminal block with 5.08 mm pitch (4 pins for power)
Mechanical Properties
Housing
IP40 protection rating, metal housing
Dimensions
6.30" × 2.13" × 4.86" (160 × 54 × 123.5 mm)
Weight
≤1kg
Installation
Rail-mounted installation, wall-mounted installation (with optional kit)
Work Environment
Operating temperature
-40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Industry standards
IEC 61000-4-2 (ESD)
Level 4 (contact discharge ±8 kV, air discharge ±15 kV)
IEC 61000-4-4（EFT）
Level 4 (Power supply: ±4 kV; Ethernet port: ±2 kV)
IEC 61000-4-5（Surge）DC
Level 4 (Power supply: ±4 kV common-mode, ±2 kV differential-mode; Ethernet port: ±6 kV common-mode, ±2 kV differential-mode)
IEC 61000-4-5（Surge）AC
Level 2 (Power supply: ±2 kV common-mode, ±2 kV differential-mode) Level 4 (Ethernet port: ±6 kV common-mode, ±2 kV differential-mode)
Warranty Policy
Warranty Policy
5 years

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(1) Specification (1)
  • Name
    Type Language Version Release Date
  • IS201 Series Product Specification V1.00
    Specification English V1.0 2026-06-18

PoE port, 10/100/1000BaseT(X), RJ45 connector
10/100/1000BaseT(X), RJ45 connector
1000Base SFP Slot
Power Supply

IS202-8GP4GS-2P48
8
-
4
Dual 48–57V DC Power Supplies

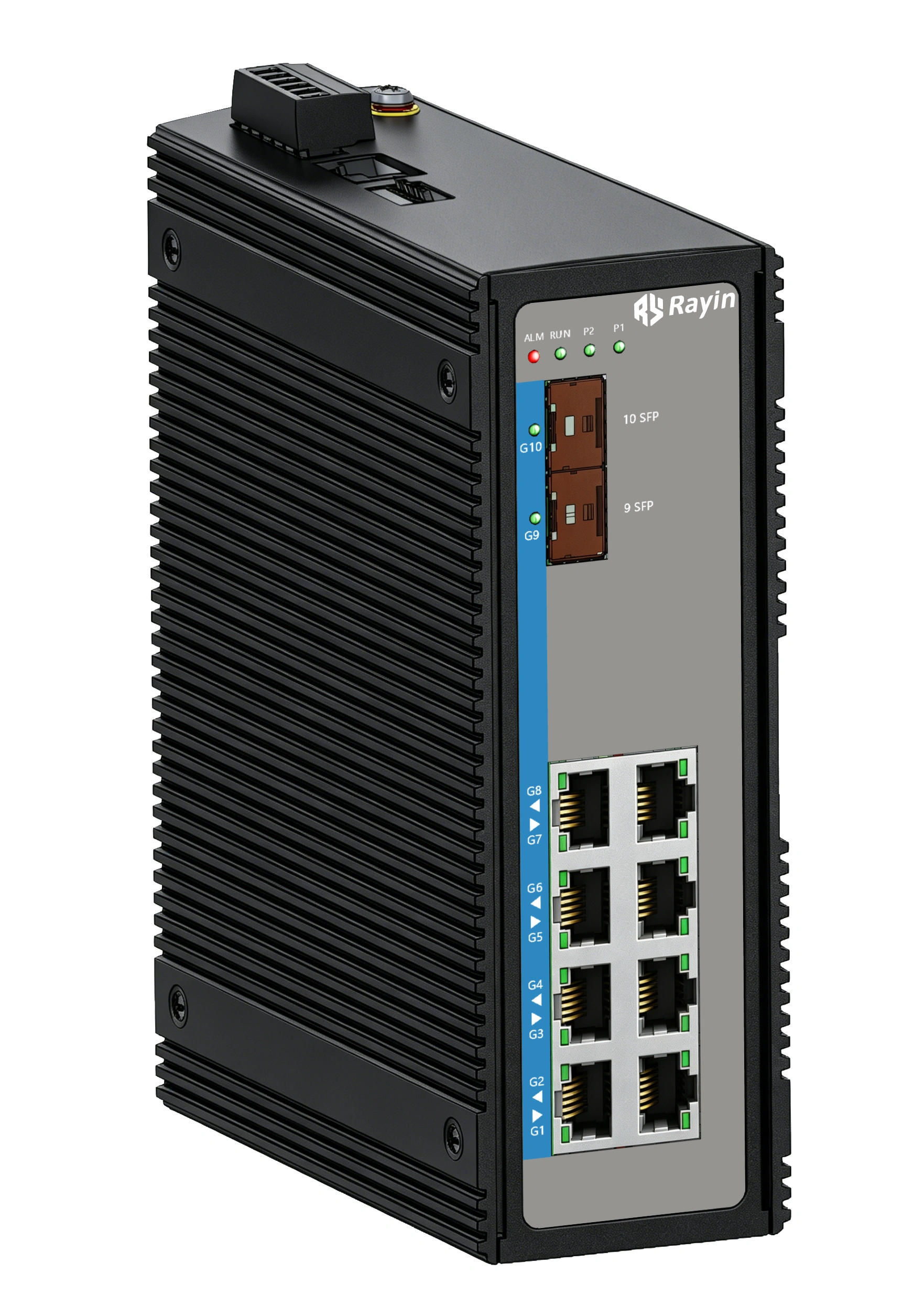

IS202-8GP2GS-2P48
8
-
2
Dual 48–57V DC Power Supplies

PoE port, 10/100/1000BaseT(X), RJ45 connector
10/100/1000BaseT(X), RJ45 connector
1000Base SFP Slot
Power Supply

IS202-8G2GS-2P48
-
8
2
Dual 12–57V DC Power Supplies

IS202-8G4GS-2P48
-
8
4
Dual 12–57V DC Power Supplies
