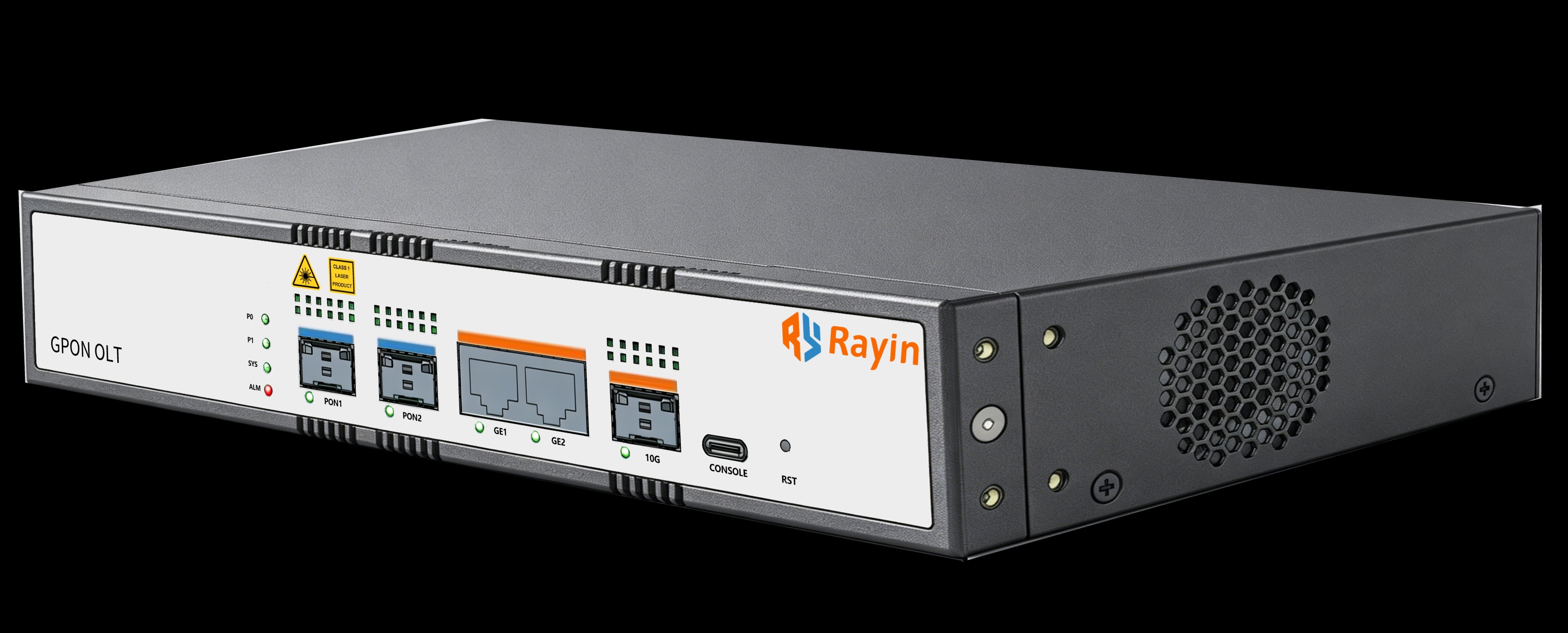

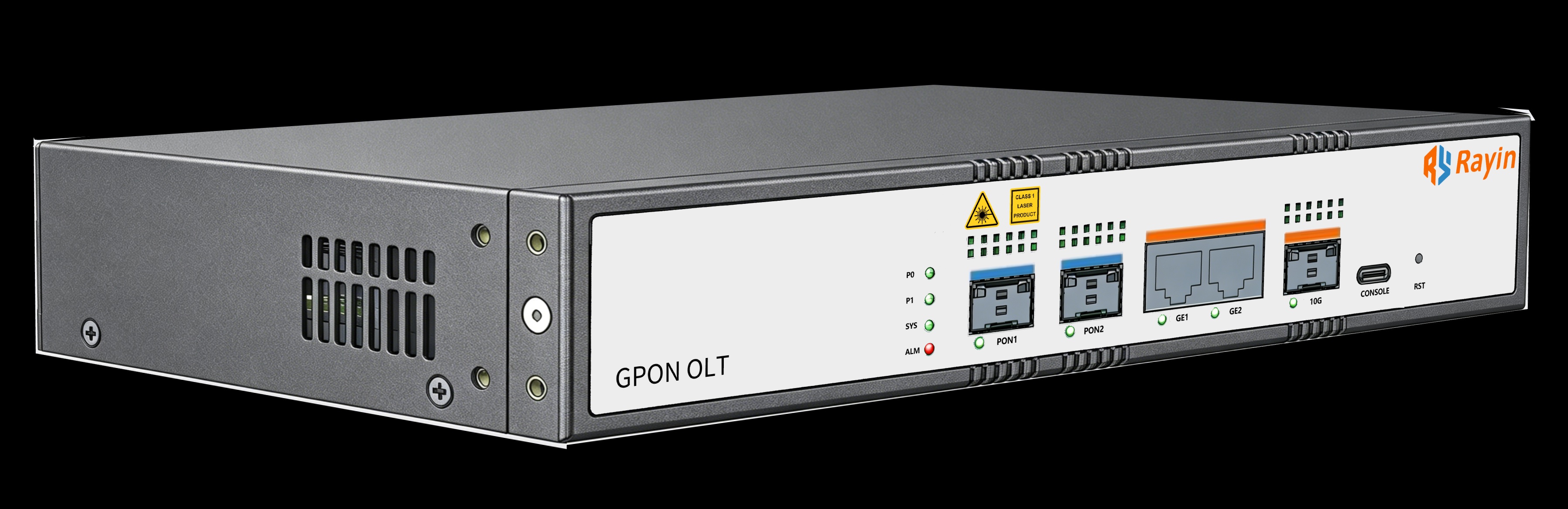

L102P is a 2-port mini GPON OLT with 1x10G SFP+ uplink and 2xGE ports， it is ideal for FTTH, FTTM and POL networks.
Same compact body, dual PON, 256 ONUs, double the reach
PON Ports 2 GPON | Max ONUs 256 |
Uplink 2 GE + 1 SFP+ 10GE | Temperature -20 to 60℃ |
The L102P shares the exact same 1U mini chassis as the L101P-A0 (239×132×44 mm, under 1.5 kg) — only the PON count differs: two GPON SFP ports each at 1:128 split, serving up to 256 ONUs in total. Identical look, mounting and power simplify stock and spare planning. It fits two buildings, a mid-size campus, or an access point that splits services across two PON trees.
| Same mini chassis as L101P-A0, dual PON serving 256 ONUs |
| Unified form factor and power simplify spares and stock |
| Wide -20 to 60 ℃ range for weak-current or outdoor enclosures |
| Uplink 2×GE + 1×10GE SFP+ keeps dual-PON traffic uncongested |
| Standard AC/DC dual power keeps services up during outages |
| CLI/Web/Telnet management with ONU batch provisioning |
| ITU-T G.984/G.988, interoperable with mainstream ONUs |
| PON Ports: 2 × GPON SFP |
| Max ONUs: 256 |
| Split Ratio: 1:128 (per PON port) |
| Uplink Ports: 2 GE + 1 SFP+ 10GE |
| GPON Rate: Down 2.488 / Up 1.244 Gbps |
| Wavelength: TX 1490 / RX 1310 nm |
| Reach: ≤ 20 km |
| Optical Class: Class B+ / C+/C++/C+++/C++++ (replaceable SFP) |
| Tx Power: B+ +1.5~+5 dBm; C+ +3~+7 dBm;C+ + + + 9 dBm |
| Rx Sensitivity: B+ -28 dBm; C+ -30 dBm |
| Form Factor: 239 × 132 × 44 mm |
| Weight: ≤ 1.5 kg |
| Temperature: -20 to 60℃ |

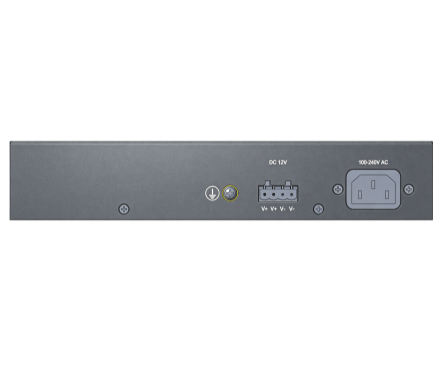

| Power: AC 100–240V and DC 12V/2A |
| Management: CLI / Web / Telnet |
| Standard: ITU-T G.984 / G.988, FSAN |
| Two buildings / adjacent campus FTTH |
| Mid campus with dual-PON zoning |
| Township node with dual uplink |
| Mixed broadband + surveillance node |
| Q: Is the L102P compatible with third-party ONUs? It complies with ITU-T G.984 / G.988 and FSAN, so it interoperates with mainstream GPON ONUs. We recommend a pilot test on your live network before mass deployment. |
| Q: How do I choose GE vs 10GE uplink? It provides two GE RJ45 ports plus one 10GE SFP+; rack models offer richer uplinks. Use GE for a small node or single building; use 10GE for multi-service aggregation or core-switch hand-off. |
| Q: How is power protected against outages? It ships with hot-swap AC/DC dual power backup, so the optical service stays up and services keep running when mains power fails. |
| Q: Is day-to-day management easy? Management is available via CLI, Web and Telnet, with ONU batch provisioning, DBA, remote troubleshooting, config backup and batch firmware upgrade. |
| Q: What is the maximum subscriber capacity? At 1:128 split per PON port, the L102P serves up to about 256 ONUs/ONTs. |
