L101P is a single-port mini GPON OLT for compact FTTH, FTTM and POL networks. 10G SFP+ uplink, plug-and-play and easy maintenance.
Compact desktop/wall-mount OLT with 1:128 split for small FTTH nodes
PON Ports 1 GPON | Max ONUs 128 |
Uplink 2 GE + 1 SFP+ 10GE | Temperature -20 to 60℃ |
The L101P-A0 is Rayin's 1-port mini GPON OLT for low-density access. At only 239×132×44 mm and under 1.5 kg, it mounts on a desk, wall or rack ear, and its -20 to 60 ℃ operating range runs wider than typical mini OLTs. A single PON port at 1:128 split serves 128 ONUs, with two GE RJ45 ports plus one 10GE SFP+ uplink — ideal for a single building, small campus, shop clusters or a light FTTH node in a township exchange.
| Tiny 239×132×44 mm body, under 1.5 kg, desktop / wall / rack mount |
| Wide -20 to 60 ℃ range for weak-current cabinets and outdoor enclosures |
| 1:128 split, 128 ONUs per unit, 2.488 Gbps down / 1.244 Gbps up |
| Uplink 2×GE + 1×10GE SFP+, GE for small nodes and 10GE for aggregation |

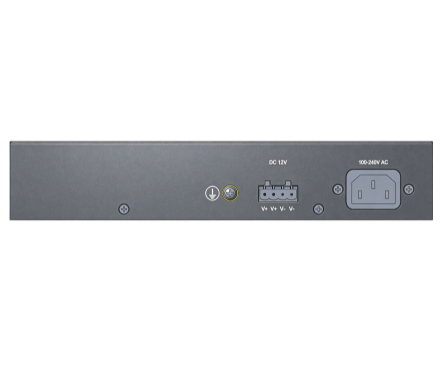

| Standard AC/DC dual power keeps the optical path up during outages |
| CLI/Web/Telnet management with ONU batch provisioning |
| ITU-T G.984/G.988 compliant, interoperable with mainstream ONUs |
| PON Ports: 1 × GPON SFP |
| Max ONUs: 128 |
| Split Ratio: 1:128 |
| Uplink Ports: 2 GE + 1 SFP+ 10GE |
| GPON Rate: Down 2.488 / Up 1.244 Gbps |
| Wavelength: TX 1490 / RX 1310 nm |
| Reach: ≤ 20 km |
| Optical Class: ClassC+～ClassC++++(replaceable SFP) |
| Tx Power: C+ + + + 9 dBm |
| Rx Sensitivity: B+ -28 dBm; C+ -30 dBm |
| Form Factor: 239 × 132 × 44 mm |
| Weight: ≤ 1.5 kg |
| Temperature: -20 to 60℃ (operating) |
| Power: AC 100–240V and DC 12V/2A |
| Management: CLI / Web / Telnet |
| Standard: ITU-T G.984 / G.988, FSAN |
| Single building / office FTTH |
| Small campus & shop clusters |
| Light township exchange node |
| Small surveillance aggregation node |
| Q: Is the L101P-A0 compatible with third-party ONUs? It complies with ITU-T G.984 / G.988 and FSAN, so it interoperates with mainstream GPON ONUs. We recommend a pilot test on your live network before mass deployment. |
| Q: How do I choose GE vs 10GE uplink? It provides two GE RJ45 ports plus one 10GE SFP+; rack models offer richer uplinks. Use GE for a small node or single building; use 10GE for multi-service aggregation or core-switch hand-off. |
| Q: How is power protected against outages? It uses an external 12V adapter and ships with standard AC/DC dual power, so the optical service stays up and services keep running when mains power fails. |
| Q: Is day-to-day management easy? Management is available via CLI, Web and Telnet, with ONU batch provisioning, DBA, remote troubleshooting, config backup and batch firmware upgrade. |
| Q: What is the maximum subscriber capacity? At 1:128 split per PON port, the L101P-A0 serves up to about 128 ONUs/ONTs. |
