L101P is a single-port mini GPON OLT for compact FTTH, FTTM and POL networks. 10G SFP+ uplink, plug-and-play and easy maintenance.
Even more compact 152×120×28mm, under 1kg, for tight spaces
PON Ports 1 GPON | Max ONUs 128 |
Uplink 2 GE + 1 SFP+ 10GE | Temperature -20 to 50℃ |
The L101P-B0 is Rayin's even more compact 1-port mini GPON OLT. At only 152×120×28 mm and under 1 kg, it is smaller and lighter than the A0, with a -20 to 50 ℃ operating range for space-tight weak-current boxes, outdoor enclosures and desktop use. A single PON port at 1:128 split serves 128 ONUs, with two GE RJ45 ports plus one 10GE SFP+ uplink — ideal for a single building, shops and a light township FTTH node.
| Ultra-compact 152×120×28 mm body, under 1 kg, fits weak-current boxes and desktop |
| Wide -20 to 50 ℃ range for outdoor enclosures |
| 1:128 split, 128 ONUs per unit |
| Uplink 2×GE + 1×10GE SFP+ |
| Standard DC dual power, no interrupt on failure |
| CLI/Web/Telnet management with ONU batch provisioning |
| ITU-T G.984/G.988, interoperable with mainstream ONUs |
| PON Ports: 1 × GPON SFP |
| Max ONUs: 128 |
| Split Ratio: 1:128 |

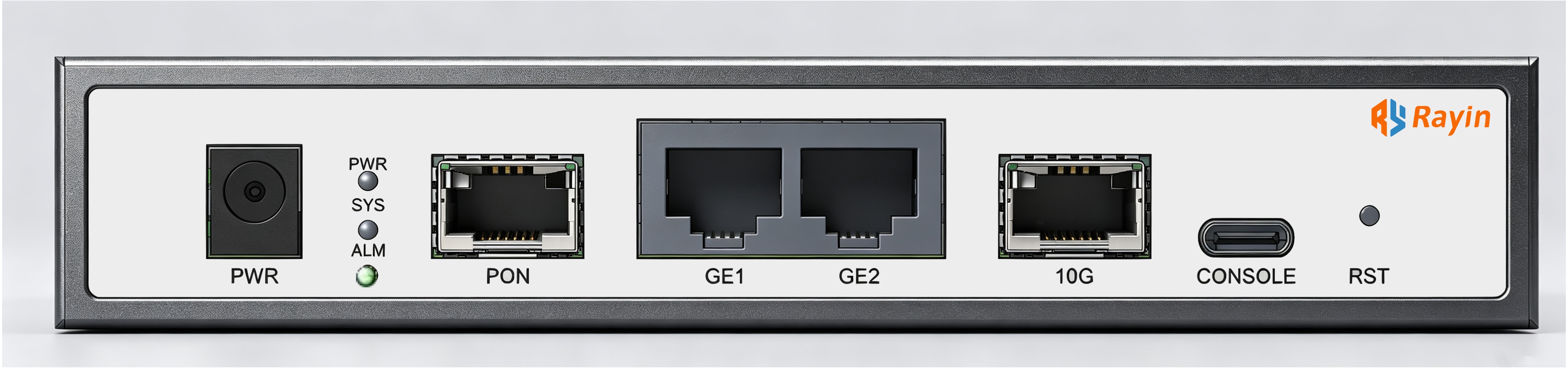

| Uplink Ports: 2 GE + 1 SFP+ 10GE |
| GPON Rate: Down 2.488 / Up 1.244 Gbps |
| Wavelength: TX 1490 / RX 1310 nm |
| Reach: ≤ 20 km |
| Optical Class: ClassC+～ClassC++++(replaceable SFP) |
| Tx Power: B+ +1.5~+5 dBm; C+ +3~+7 dBm;C+ + + + 9 dBm |
| Rx Sensitivity: B+ -28 dBm; C+ -30 dBm |
| Form Factor: 152 × 120 × 28 mm |
| Weight: ≤ 1 kg |
| Temperature: -20 to 50℃ (operating) |

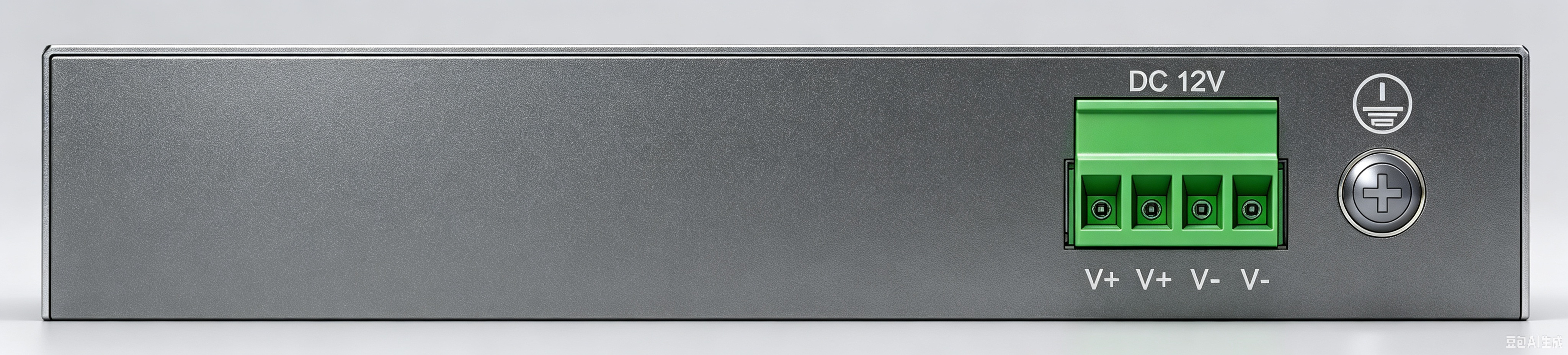

| Power: DC 12V/1.5A |
| Management: CLI / Web / Telnet |
| Standard: ITU-T G.984 / G.988, FSAN |
| Weak-current box / desktop FTTH |
| Shops & chain stores |
| Light township exchange node |
| Small surveillance node |
| Q: Is the L101P-B0 compatible with third-party ONUs? It complies with ITU-T G.984 / G.988 and FSAN, so it interoperates with mainstream GPON ONUs. We recommend a pilot test on your live network before mass deployment. |
| Q: How do I choose GE vs 10GE uplink? It provides two GE RJ45 ports plus one 10GE SFP+; rack models offer richer uplinks. Use GE for a small node or single building; use 10GE for multi-service aggregation or core-switch hand-off. |
| Q: How is power protected against outages? It ships with standard DC dual power, so the optical service stays up if one feed fails. |
| Q: Is day-to-day management easy? Management is available via CLI, Web and Telnet, with ONU batch provisioning, DBA, remote troubleshooting, config backup and batch firmware upgrade. |
| Q: What is the maximum subscriber capacity? At 1:128 split per PON port, the L101P-B0 serves up to about 128 ONUs/ONTs. |
