 Home Products Industrial PON Industrial ONU GPON ONU

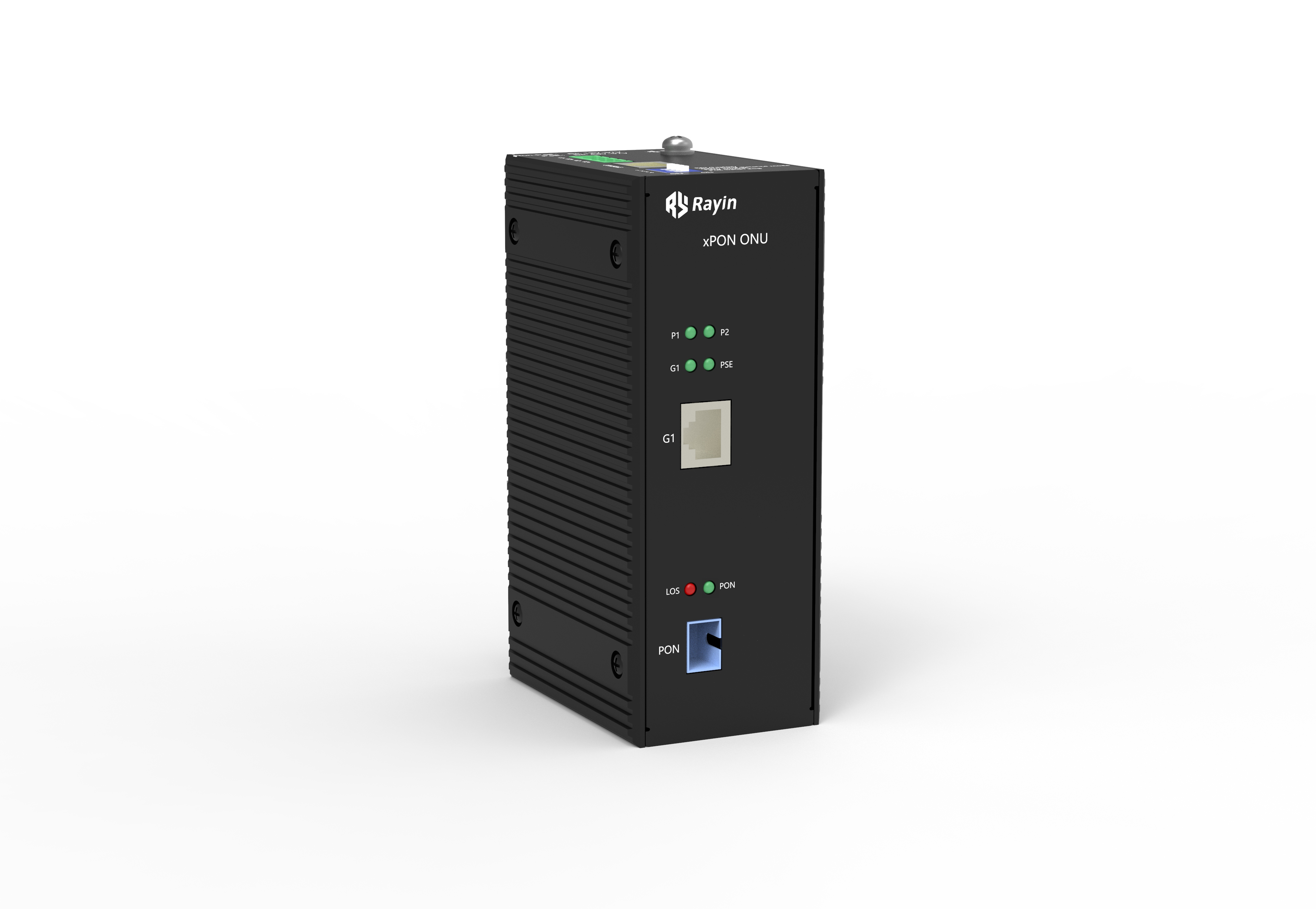

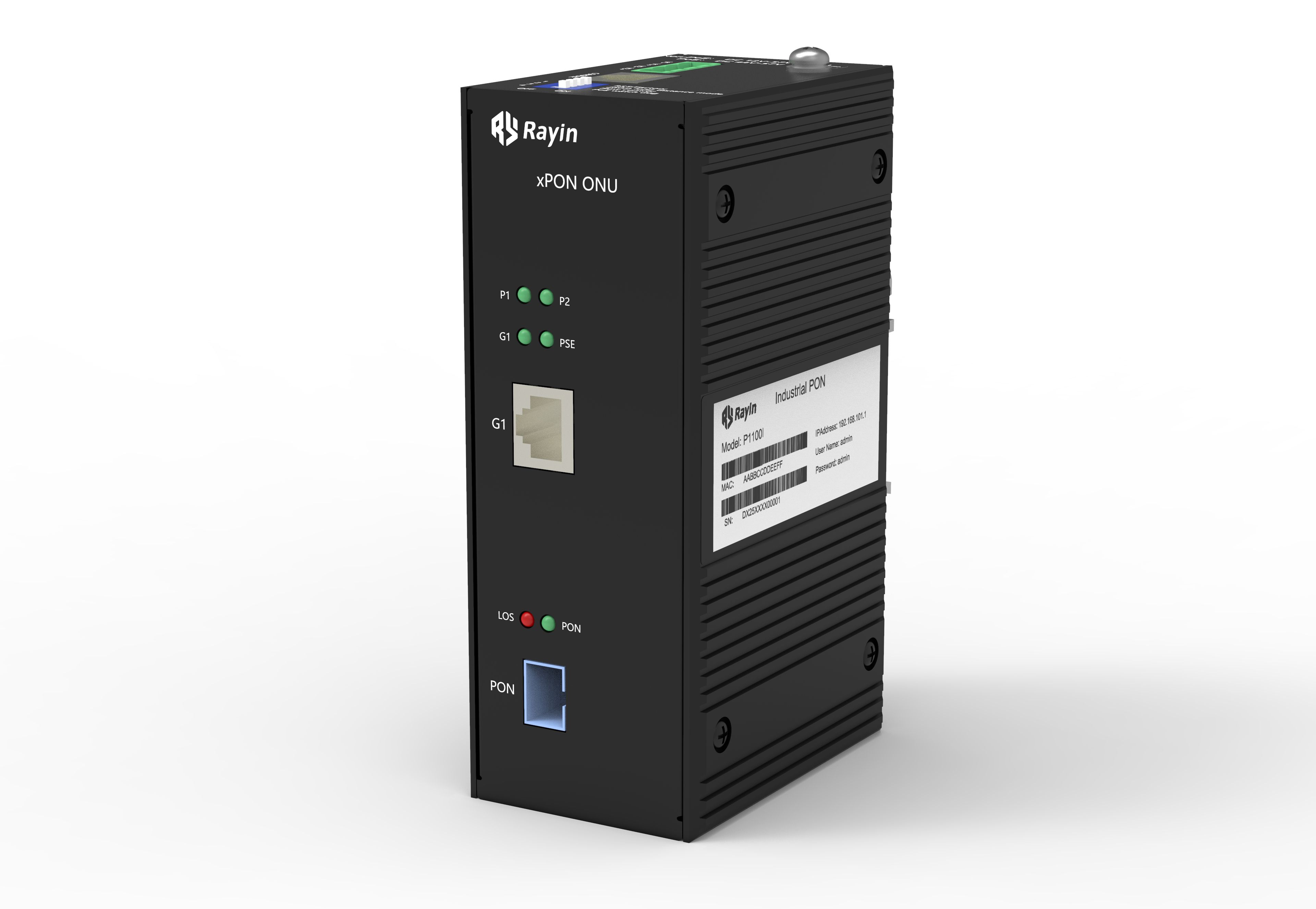

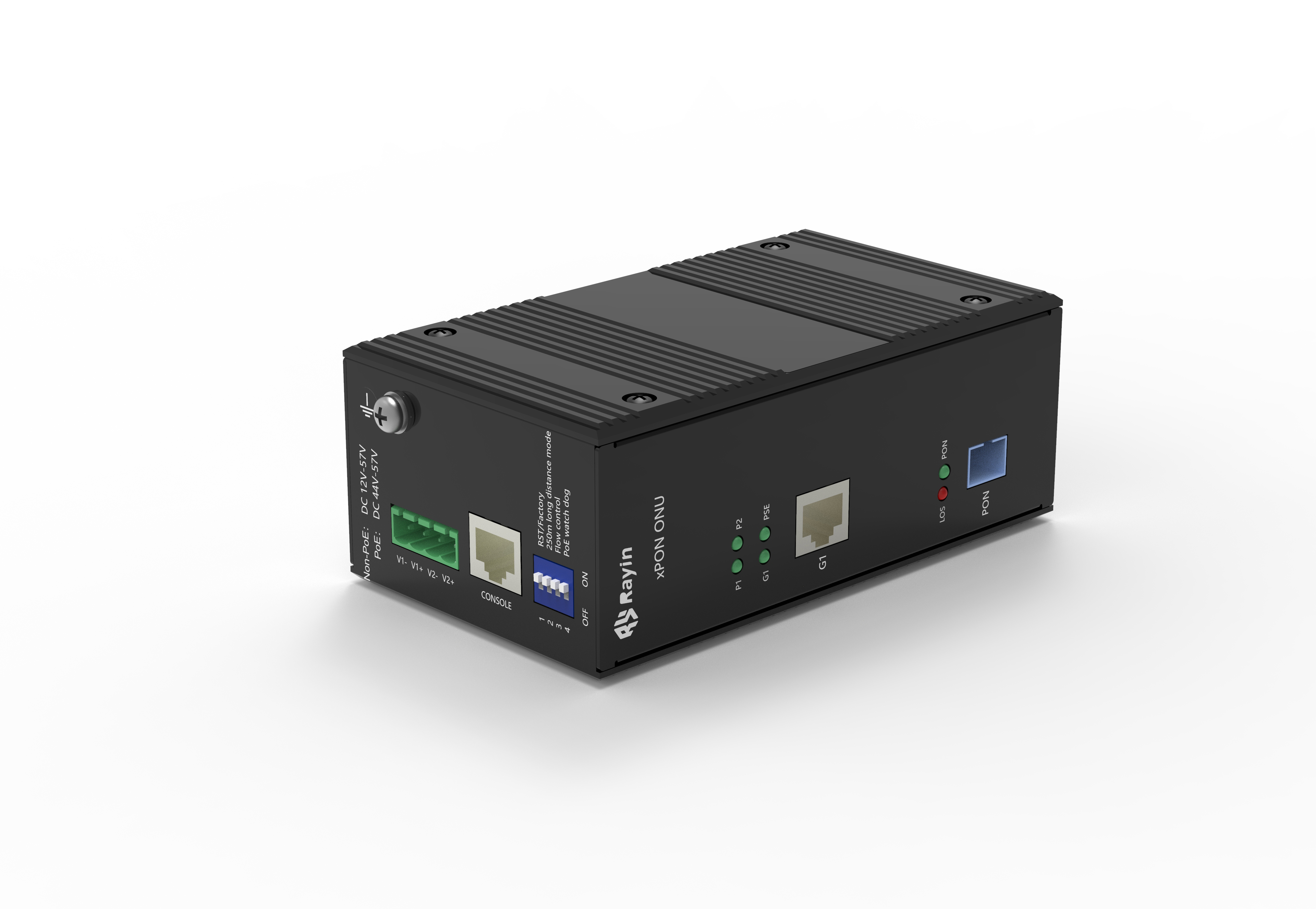

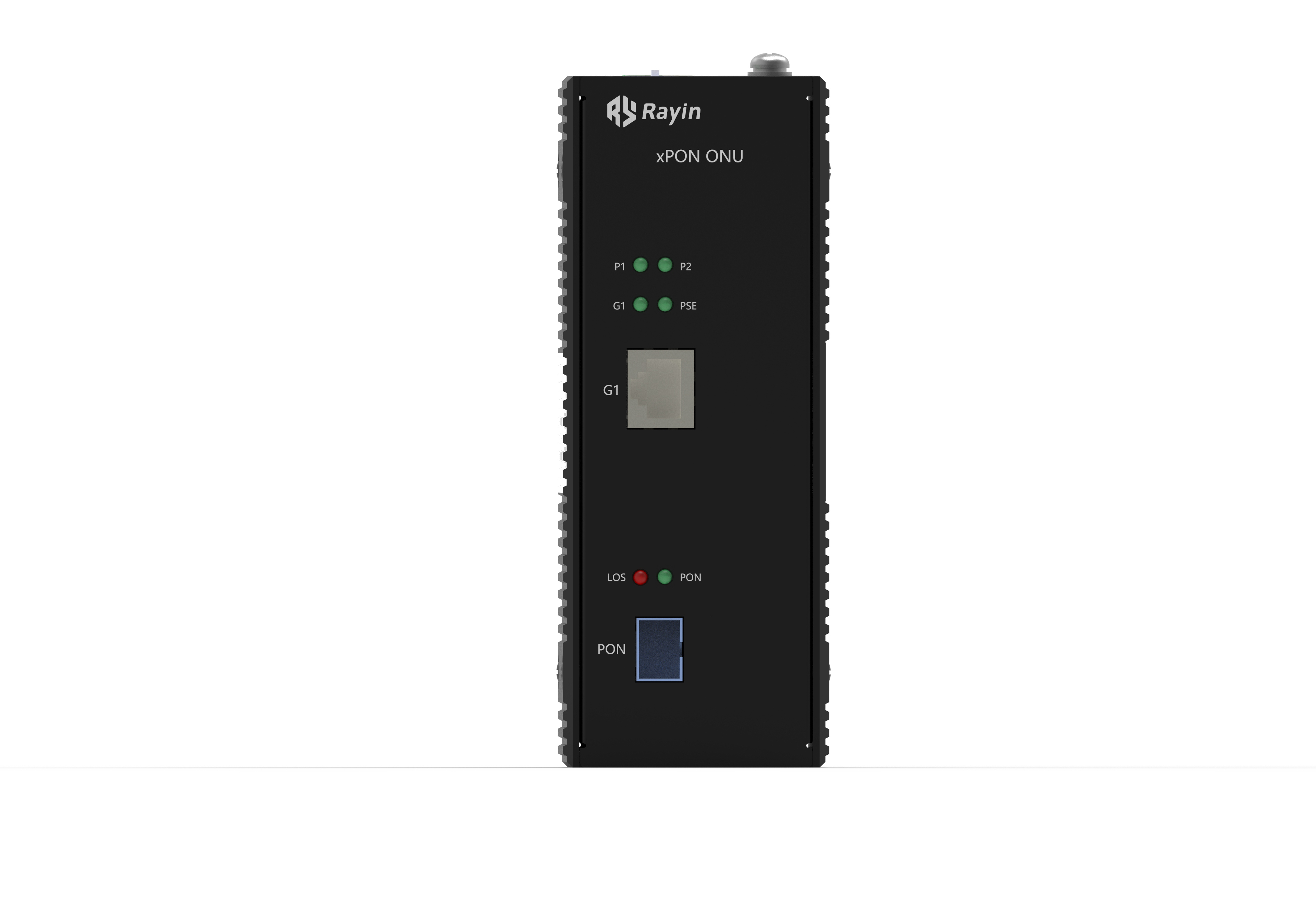

P1100I

Single-port PSE Industrial-grade xPON ONU

    Advantages and Features

  • Supports 12V–57V DC (non-PoE) or 44–57V DC (PoE) input
  • EPON/GPON Adaptive
  • 30W POE output
  • Supports a wide operating temperature range of -40°C to 75°C

Certification

Get A Quote Download
  • Overview
  • Specifications
  • Resources
  • Model
  • Get A Quote

The P1100I Dual-Mode Optical Network Unit (ONU) supports both Ethernet Passive Optical Network (EPON) and Gigabit Passive Optical Network (GPON) access modes. Its PoE power supply function complies with the IEEE 802.3af/at standards and supports 12V–57VDC (non-PoE) or 44–57VDC (PoE) input, ensuring stable device operation. It also features a wall-mount installation design to meet deployment requirements in various application scenarios.

The P1100I is specifically designed for demanding communication applications and is suitable for fields such as video surveillance and process monitoring systems. It enables efficient data transmission through scalable backbone communication networks. Equipped with a high-performance forwarding engine, this device delivers an exceptional user experience for services such as Internet access and high-definition video.

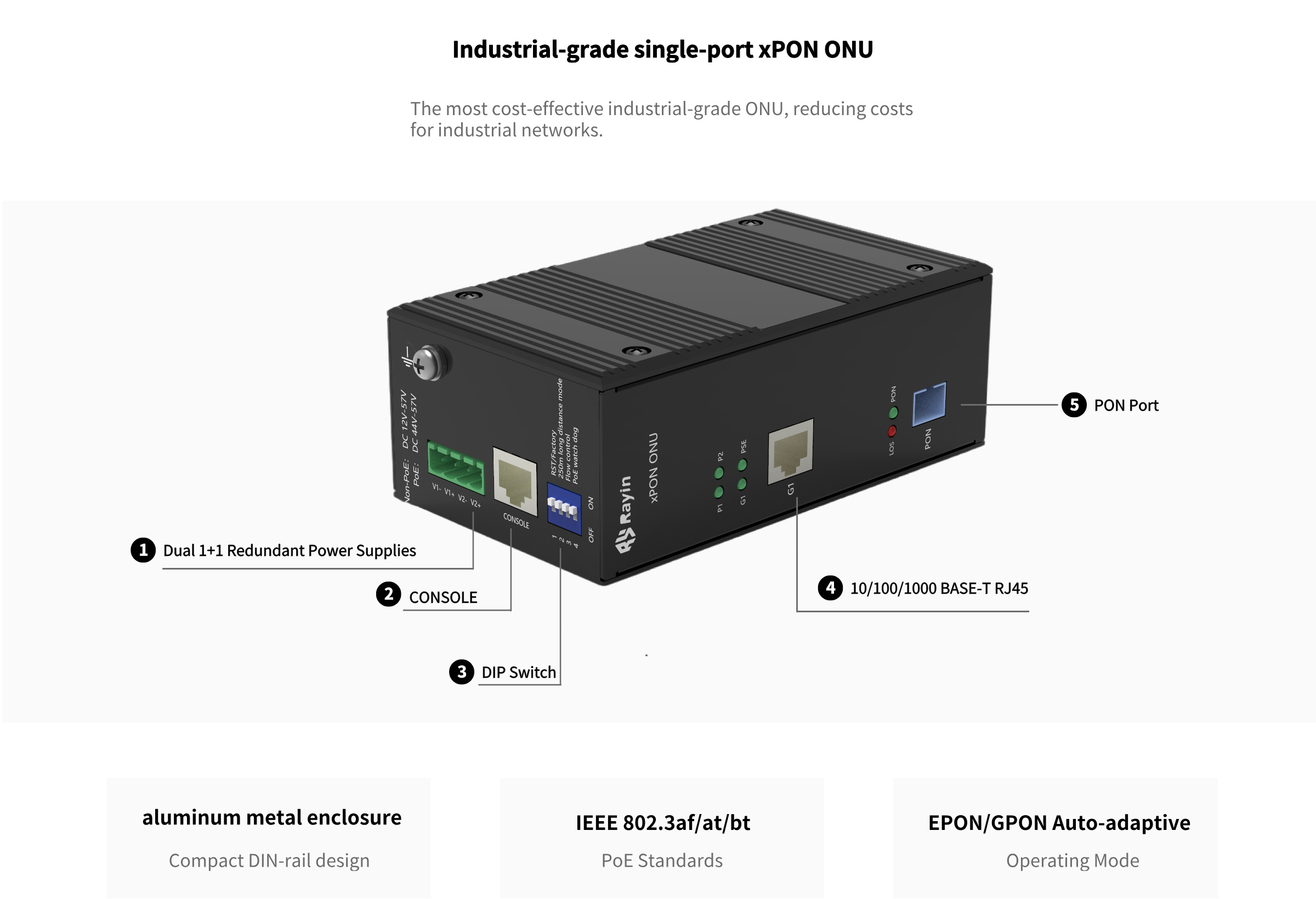

英文产品2__2026-02-12+13_54_00

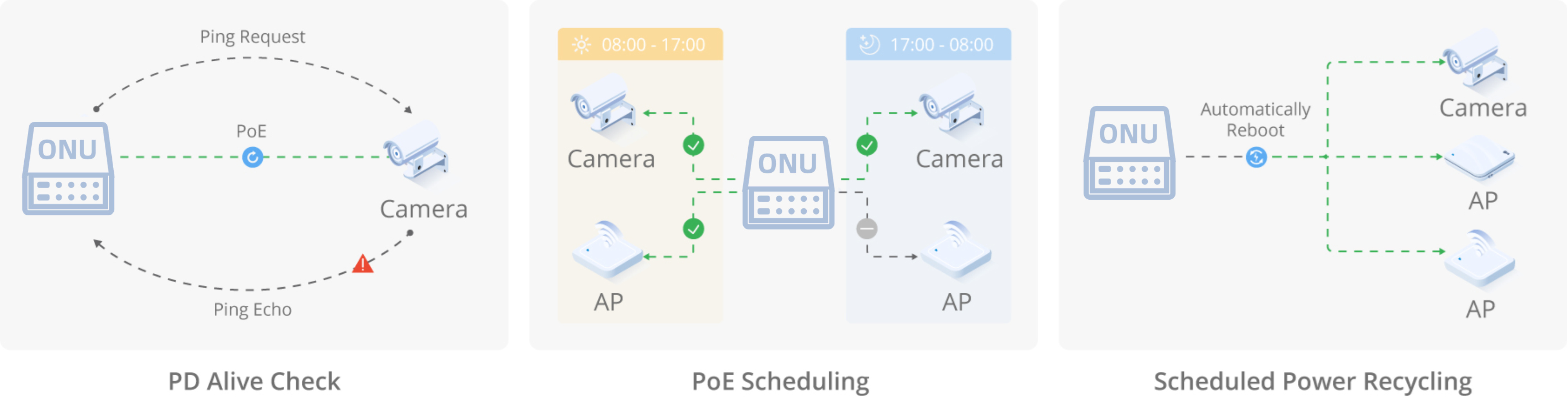

02-POE watchdog

PON interface
LAN port
LED connector
Power Specifications
Mechanical Properties
Work Environment
Industry standards
Warranty Policy
PON interface
Receiver sensitivity
-27dBm
Transmitted optical power
0 ~ +4dBm
Transmission distance
20KM
wavelength
Transmit at 1310 nm, receive at 1490 nm
Optical interface
SC/UPC connectors (SC/APC connectors available as an option)
LAN port
Quantity
1×GE（PoE）
rate
GE: 10/100/1000 Mbps auto-negotiating Ethernet interface, RJ45 connector; PoE: IEEE 802.3af/at
LED connector
LED indicator light
PWR、PON、INT、LOS、LAN、PSE
Power Specifications
Power supply
Supports 12V–57V DC (non-PoE) or 44–57V DC (PoE) input
Overcurrent protection
Support
Reverse connection protection
Support
Mechanical Properties
Housing
metal casing
Dimensions
5.512 × 2.126 × 3.150 inches (140 × 54 × 80 mm)
Weight
≤0.8kg

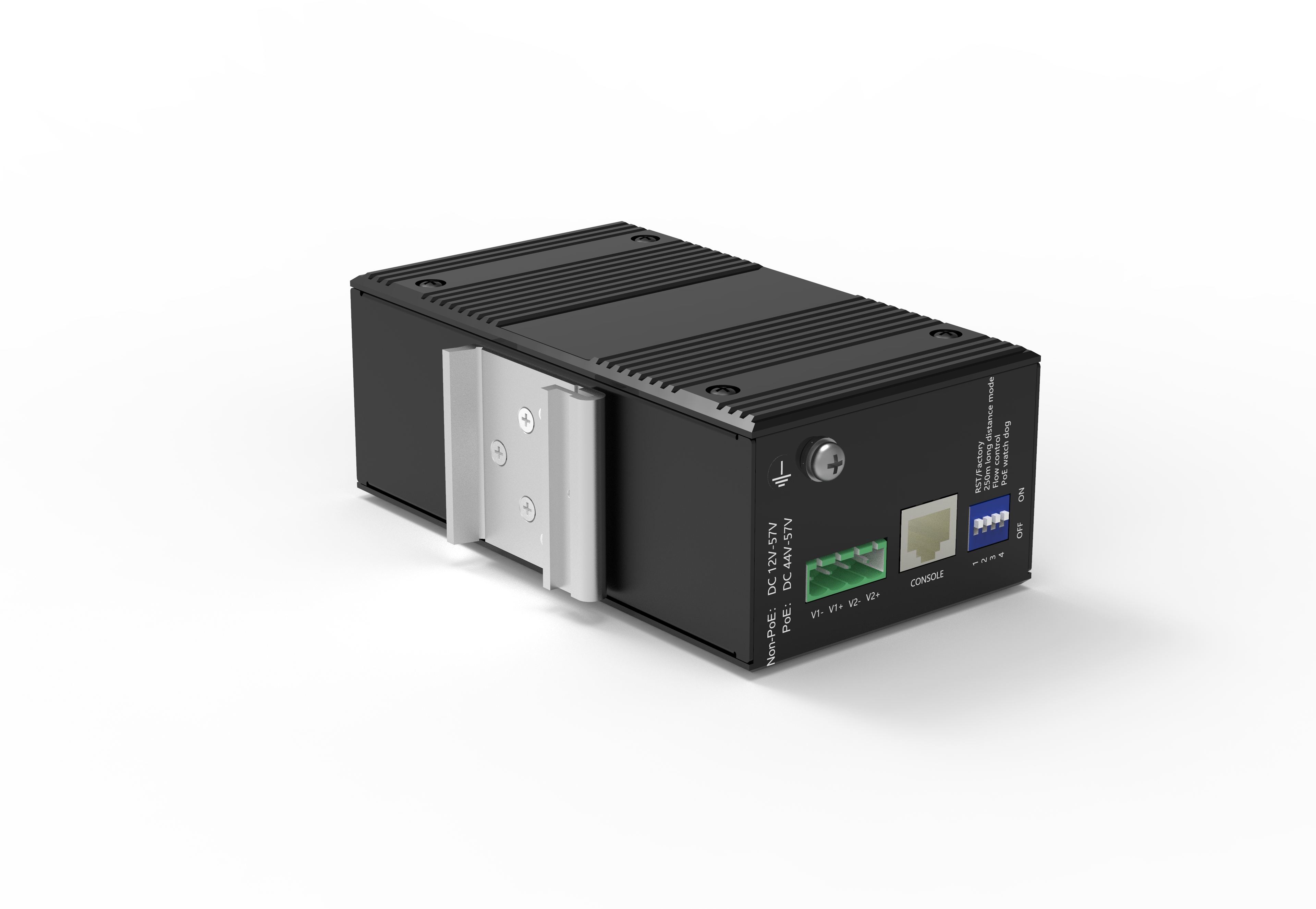

Installation
Wall-mounted installation
Work Environment
Operating temperature
-40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Industry standards
IEC 61000-4-2 (ESD)
Level 4 (contact discharge ±8 kV, air discharge ±15 kV)
IEC 61000-4-4（EFT）
Level 4 (Power supply: ±4 kV; Ethernet port: ±2 kV)
IEC 61000-4-5（Surge）DC
Level 4 (Power supply: ±4 kV common-mode, ±2 kV differential-mode; Ethernet port: ±6 kV common-mode, ±2 kV differential-mode)
Warranty Policy
Warranty Policy
3 years

Software firmware and drivers

All(0)
  • Name
    Type Version System Release Date

Support Documentation

All(1) Specification (1)
  • Name
    Type Language Version Release Date
  • P1100I Product Specification528.05 KB
    Specification English V1.1 2026-03-10

10/100/1000BaseT(X) ports, RJ45 connector
PoE port, 10/100/1000BaseT(X), RJ45 connector
power supply

P1100I
-
1
12–57V DC (Non-PoE) or 44–57V DC (PoE)
